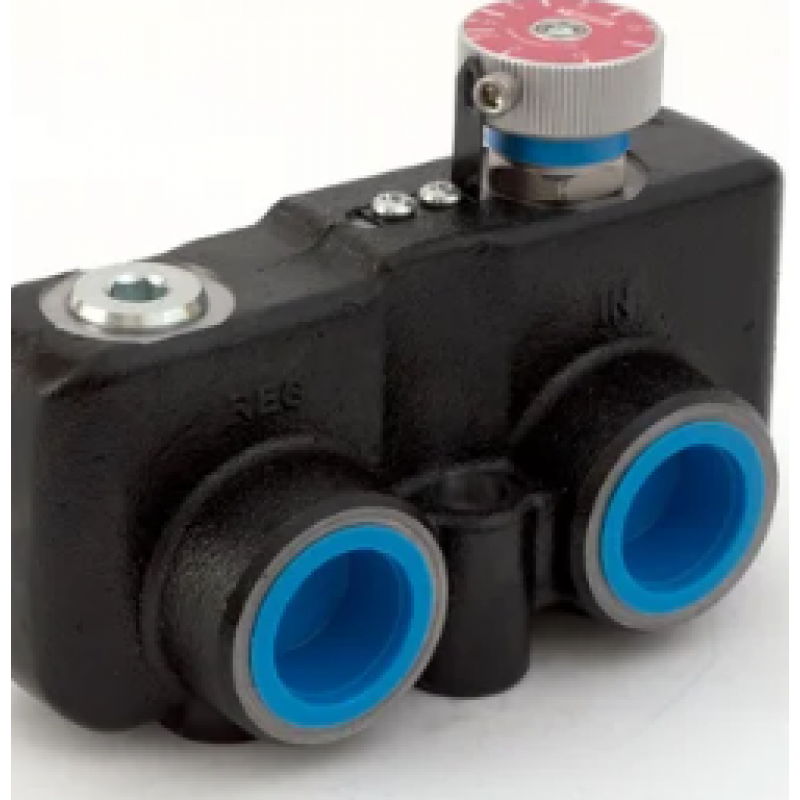

Priority Flow Divider
Product Details:

Valve Size	various sizes available
Brand	Webtec
Media	Hydraulic Oil
Pressure	420 Bar
Mounting Position	Flange mounted/ manifold mounting
Construction	Steel

Webtec Priority Flow Dividers, split a single input (P) flow into a ‘Priority’ (regulated) flow and a ‘By-Pass’ (excess) flow which can be returned directly to the oil reservoir or used to power a second system.
These flow dividers are manufactured with precision utilizing top notch material & latest techniques following the industrial norms.
Features:
Maximum (working) Pressure: 250 bar (3600 psi)
Total flow capacity: upto 114 lpm (30 US gpm)
Material: Steel components in cast iron body painted black; aluminium knob (steel knob optional)
Weight: 2.10 to 3.50 Kg (4.6 to 7.7 lbs)
