Pressure Transmitter
Product Details:

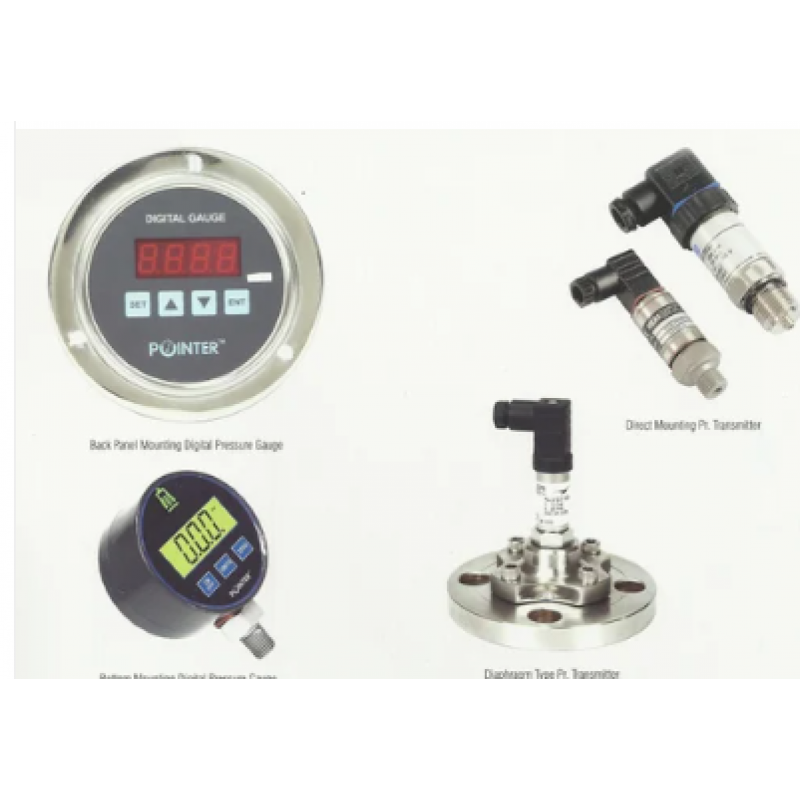

Construction features (digital pressure gauge) selection of engineering unit : kg/cm2, bar, PSI, enclose : aluminum anodised, light weight / ss 304 display : 8 x 2 dot matrix display, shows pressure, unit & low batt. media : it works with any media that will not adversely affect SS 316 accuracy : 0. 15% & 0. 5% or better of full scale at calibrated temperation power : standard 9 V 150 mah, ni mh with charger or 230 VAC, 50hz connection : ⅟4 BSP male (other on request) over pressure : 130% of specified range 4-20 MA : available (optional) spdt relay output : available (optional) provides 2 adjustable spdt relay diaphragm seals : various size , size style and moc avaialable construction features (pressure transmitter) pressure range : 50, 100, 200, 300, 500, 1000, 3000, 5000, 10,000 psi accuracy :  0. 25% of fs media compatibility : fluids compatible with 17-4 ph stainless steel pressure cycles : > 10 million pressure over load : 2 times rated pressure without calibration shift burst pressure : 5 times rated pressure long term stability : 0. 25% fs typing (12 month) temperature :-40oC to 125oC.
