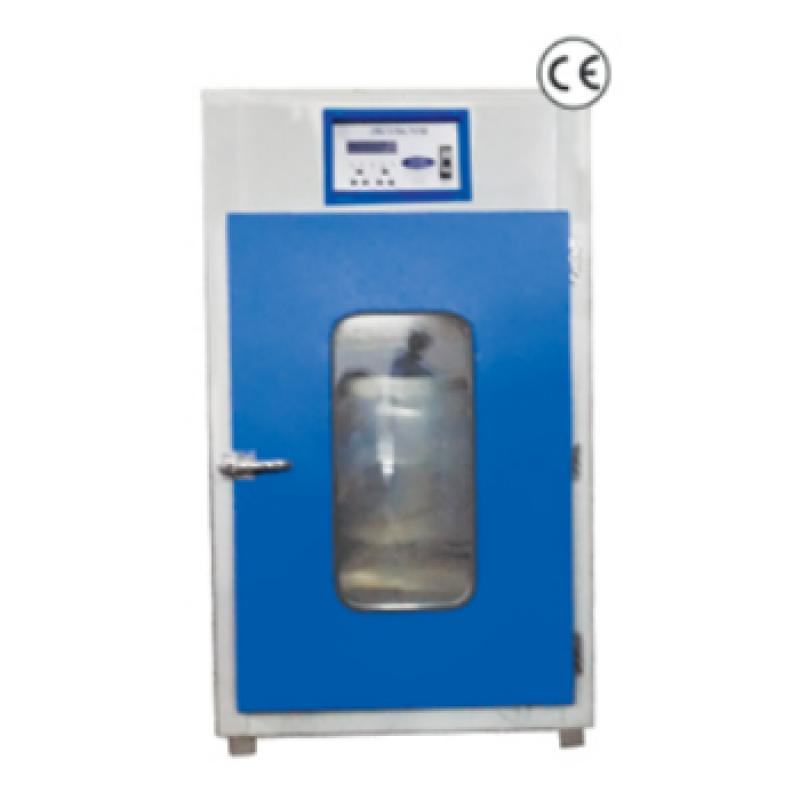

Precision Laboratory Incubator
Precise Sterilization, Incubating & drying in one unit.
Better mineral/glass wool blanket insulation keeps the surface of the Instrument from being burnt.
Silent Hot Air blower unique Design of air circulation for uniform Air movement.
Unique design of Ventilation keeps the surface of the instruments from being burnt.
Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different height.
Kanthal A-1, Super quality coil shaped heaters duly embedded / wounded on the sides & bottom for better accuracy.
Full feature with Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temp. Controller cum Indicator, having safety alarm facility (on customer demand).
Best quality Bi-Metallic Hydraulic Capillary Thermostat to give accurate result.
Technical Specifications :
MODELS IIC 103 IIC 103A IIC 103B IIC 103C IIC 103D IIC 103F IIC 103E Capacity "L" 28 45 95 125 224 252 336 Interior (mm) 300x300x300 350x350x350 450x450x450 450x450x600 605x605x605 605x450x900 600x600x900 Heater "W"Wattage 400 W 400 W 500 W 700 W 750 W 1 K.W 1.0 KW. Shelves 1/2 1/2 2 2q 2 3 3
Available model: Thermostatic, Digital PID, LCD Screen with Timer & AlarmTechnical Parameters :- Temperature Range : Ambient to 70°C
- Temperature Stability : ±0.5 °C
- Control Panel : With Mains & Load Indictor Mains Switch & Fan Switch, Temp. Controller
- Material : CRC / Mild Steel with Powder Coated, S.S. Gate on Digital Model
- Optional : Stainless Steel Gate/ Full body Stainless Steel (On Demand)
- Digital Setting : 0.1°C
- Digital Resolution : 0.1°C
- Safety Function : Temp Over shoot high & Low Temp. Alarm +/- 5 D°C, MCB Provided
- Optional : Outer S. S. 304 grade body on customer demand
Inner Acrylic clear door. - Interior : S. S. 304 grade sheet
- Insulation : Ceramic Blanket / Mineral Wool
- Front Door : mineral wool insulated door with glass window
- Power Consumption : 220/230V AC Supply ±10%. 50 HZ
- Duty Cycle : Continuous
Better mineral/glass wool blanket insulation keeps the surface of the Instrument from being burnt.
Silent Hot Air blower unique Design of air circulation for uniform Air movement.
Unique design of Ventilation keeps the surface of the instruments from being burnt.
Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different height.
Kanthal A-1, Super quality coil shaped heaters duly embedded / wounded on the sides & bottom for better accuracy.
Full feature with Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temp. Controller cum Indicator, having safety alarm facility (on customer demand).
Best quality Bi-Metallic Hydraulic Capillary Thermostat to give accurate result.
Technical Specifications :
|
| |
- Temperature Range : Ambient to 70°C
- Temperature Stability : ±0.5 °C
- Control Panel : With Mains & Load Indictor Mains Switch & Fan Switch, Temp. Controller
- Material : CRC / Mild Steel with Powder Coated, S.S. Gate on Digital Model
- Optional : Stainless Steel Gate/ Full body Stainless Steel (On Demand)
- Digital Setting : 0.1°C
- Digital Resolution : 0.1°C
- Safety Function : Temp Over shoot high & Low Temp. Alarm +/- 5 D°C, MCB Provided
- Optional : Outer S. S. 304 grade body on customer demand
Inner Acrylic clear door. - Interior : S. S. 304 grade sheet
- Insulation : Ceramic Blanket / Mineral Wool
- Front Door : mineral wool insulated door with glass window
- Power Consumption : 220/230V AC Supply ±10%. 50 HZ
- Duty Cycle : Continuous
