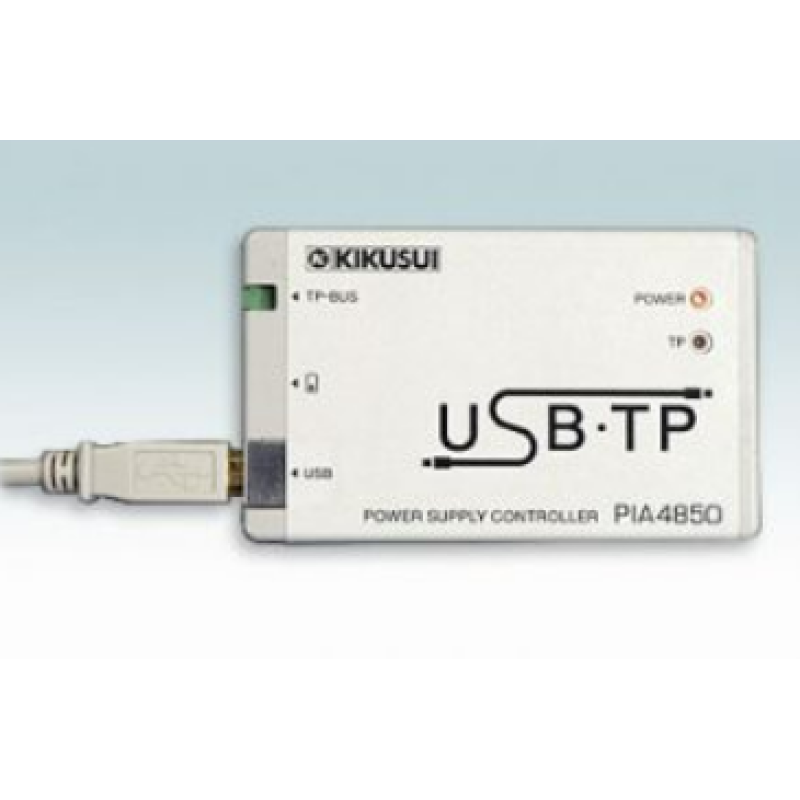

Power Supply Controller with USB PIA4850

Outline

The PIA4850 is a power supply controller with USB interface to control Kikusui DC power supply with TP-BUS. PAS Series, PWR Series or other models that equips TP-BUS can be digitaly controled by PC, as well as for read-back of output values and status monitoring. It operates using bus power and with its simple system and compact structure, you can use whenever you need with easy setup.

 Features

• USB 2.0 compatible
• Can be used with Windows Vista/XP/2000.
• Operates using bus power. Requires no AC adapter.
• Bus power operation. No AC adapter required.
• Allows read-back of output values and status monitoring.
• Can control up to 32(*1) DC power supplies that equip TP-BUS(*2).
  (Different power supply models can be combined.)
  TP-BUS connection can be extended up to 200 m. Ideal for remote monitoring !
