Power Rheostat
Product Details:

Operating Temperature	up to 200 DegreeC
Rated Power	3W TO 10000W
Frequency	50/60 HZ
Material	constantan and manganin
Voltage	117-V
Accuracy	high power
Power	500W
Quality	Standard
Country of Origin	Made in India

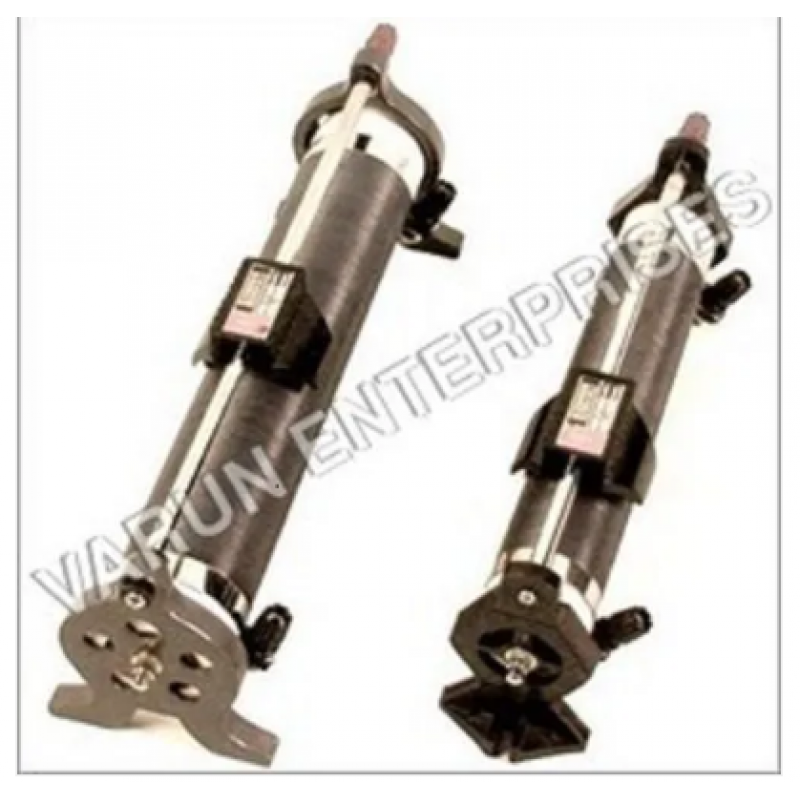

Rheostats Power Rheostats are made with a variety of resistance & current carrying capacity so as to satisfy every need. They are wound with heavily oxidized eureka resistance wire upon a porcelain tube diameter 44 mm approximate The tube is carrying upon Bakelite rider, and the heavy duty sliding contact is of the phosphor bronze with a brass rod. 4 mm socket terminals are fitted, allowing for rheostat or potentiometer connection. Total resistance and maximum current capacity are marked on the slider. Total Permanent current loading should not exceed 75% of the marked values. The actual resistance of Wire Wound Rheostats shall be +20% -5% of the rated resistance as per our resistance chart.
