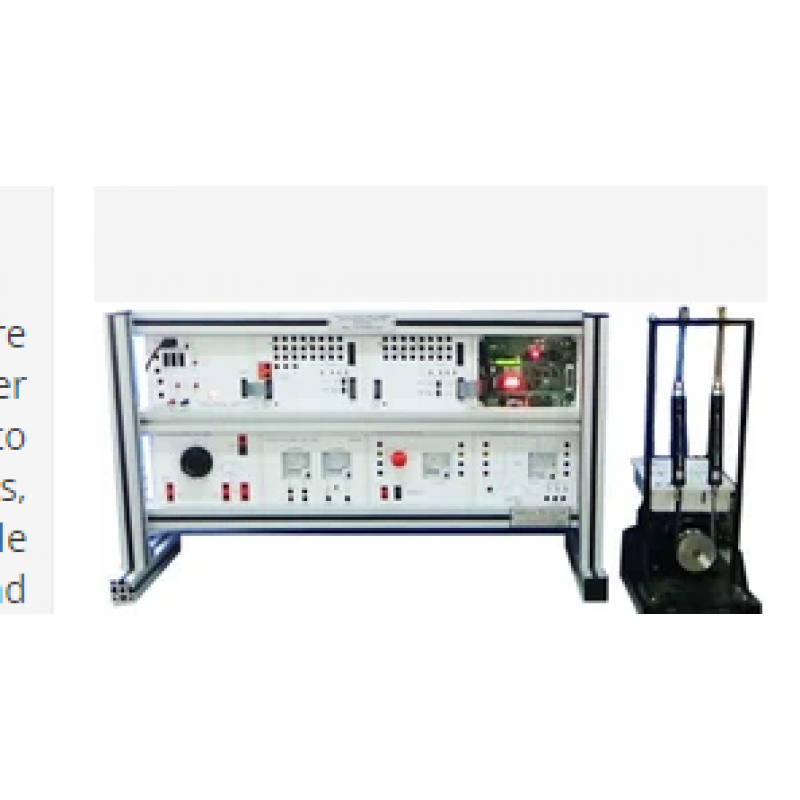

Power Electronics & Drive Experiment Trainer
Product Details:
XPO-PEDEB includes reconfigurable hardware modules and individually replaceable power modules, which may be interconnected to achieve more than 14 different circuit topologies, moreover, the software (controller) is accessible to user, thereby facilitating quick verification and testing of news ideas. XPO-EST/DSP Texas 28335 is used to facilitate quick verification and testing of software strategies in embedded C, you can chose your choice of controller. SPWM, SVPWM, Trapezoidal etc. outputs from controller interfaced to motors using IGBT power module through 26 pin FRC, 3 line encoder signals are used as feedback Optionally AC/DC hall current sensors (2 Nos.) & opto isolated DC bus voltage interface PCBs (SSCV & SSCI) mounted inside. Light weight yet sturdy, table top Aluminum profile modular flat demo panel setup, carrying various high voltage components housed in plastic modular panels with colorful overlays to minimize shock possibility & easy servicing. Facilitates easy and safe wiring by students due to use of 4mm Shrouded banana patch cords & ABS molded sturdy panels for high voltage circuits. Colorful screwless overlays showing circuits diagrams & its connection tag numbers for easy understanding and connections, experiments also set of Instructor Guide & Student Workbook.
Power Electronics & Drive Experiment Trainer
