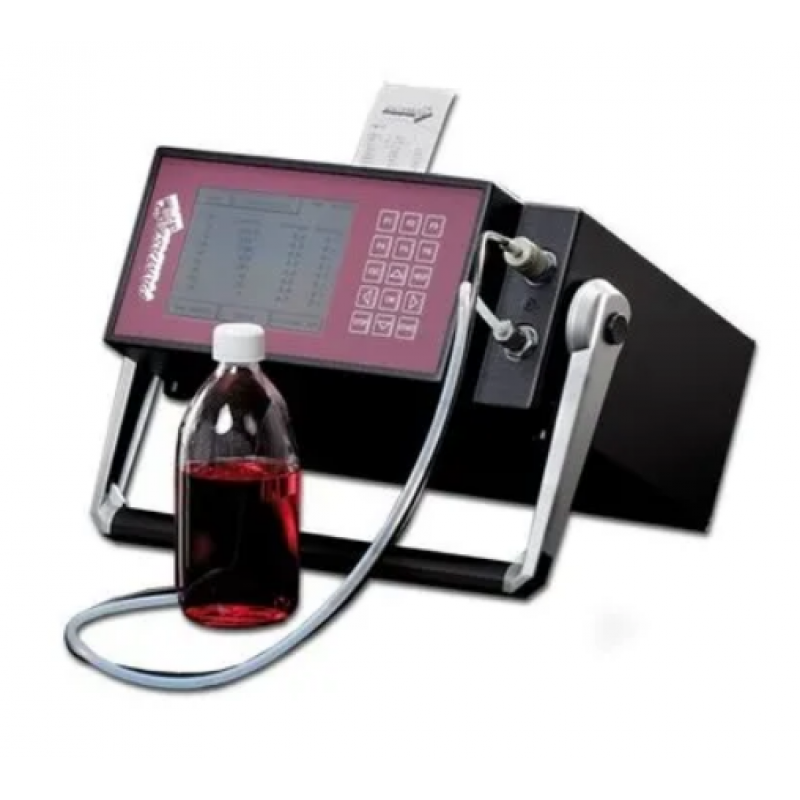

Portable Particle Counter for Oil

Product Details:

Usage/Application	Particle counting in industrial oils, oil based liquids and other fluids for lab, online and field.
Model Name/Number	S40 Series
Capacity	Particle size -2-100 micron and pressure- up to 420bar
Features	08 channels with ISO11171 and ISO4406 calibrations at a time
Max. particle concentration	1,20,000 particles/ml

S40 Series is a series of portable particle counting systems available in different models for fluids like hydraulic oil, lubricating oil, gearbox oil, low viscous diesel, kerosene, aviation turbine fuel, Phosphate-ester based hydraulic fluids, as well as high viscous fluids up to 1000cst. The volumetric HCB-LD 50/50 sensor with wear resistant ceramic piston pump offers highest accuracy, constant flow and lowest coincidence error. The system is integrated with touch screen, touch pad and thermal printer for stand alone use. Reports can be generated according to ISO4406, NAS1638, SAE AS 4059 E, GJB420A, GOST17216 etc. The system is equipped with an integrated battery for up to three hours operation and data storage of up to 4000 measurements.



Models : All models are also available in rugged casing as ‘GO’ versions for full portability

·         S40 Standard

·         S40 Lube

·         S40 Skydroll

·         S40 Fuel

S40 Avatur- analysis of aviation fuel according to EI-IP577 and DEF-STAN 91-91
