Portable Multi Gas Detector

Product Details:

Minimum Order Quantity	1 Piece
Detector Type	Portable Multi Gas
Name of Gases Detected	Portable Multi gas detector
Brand	Applied techno systems
Model	ATS-103M
Power Source	Battery
Display Type	Digital
Accuracy	+/-2
Warranty	1 year
Pump	No
Country of Origin	Made in India

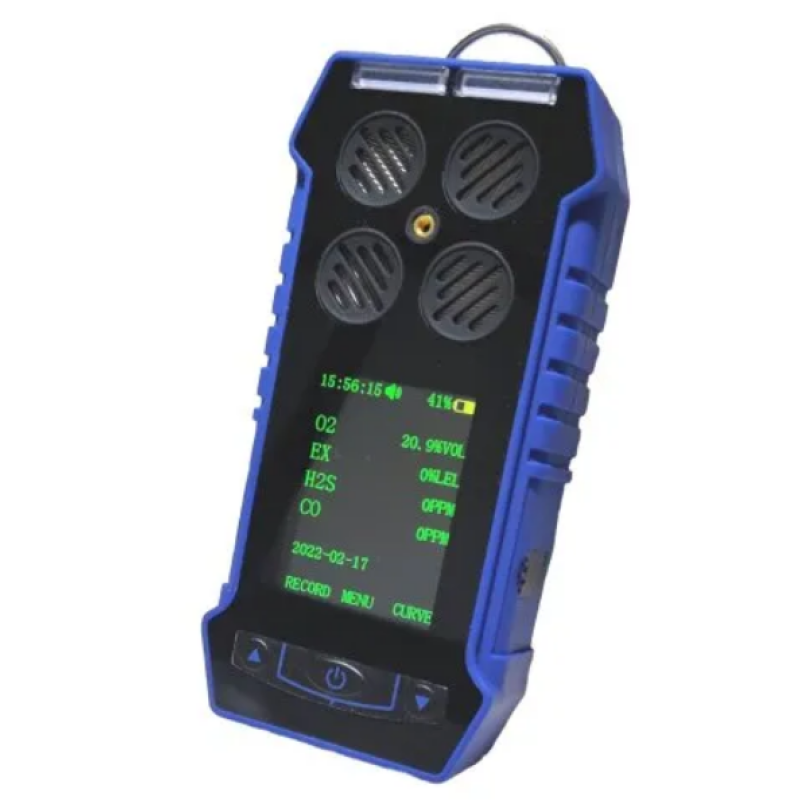

Portable and multi-gas detector simultaneously monitors and displays up tofive gases. The compact and field tough ATS-103M features a non-intrusiveintegrated sampling pump designed for performance, reliability and ease-ofuse.It's optional Data Logging and computer interface features can be used forfurther detailed analysis.
SPECIFICATION:
Gases detected : CH4/LEL, O2, H2S, COMeasuring range :CH4: (0.00~5.00)%vol (Optional)LEL: (0~100)%LELO2 : (0~30.0)%volH2S: (0~100)ppmCO: (0~1000) ppmResolution ratio : CH4: 0.01, LEL: 1%LEL, O2: 0.1%vol,H2S:1ppm, CO: 1ppmSensor : High quality catalytic sensor for LELElectrochemical sensor for H2S, CO & O2Sensor lifetime : ≥ 2yearsResponse time : CH4: ≤20S ( T90 ), LEL: ≤20S ( T90 ), O2: ≤35s(T90),H2S: ≤45S ( T90 ), CO: ≤45s (T90)Alarms : Audible--buzzer with ≥85dB @1m audibleVisible--flashing red LED, ≥20m visibleVibrationAlarm point : High and low, fully adjustableTemperature : -25 Deg. C to +55 Deg. CContinuous working time : ≥13hoursDisplay : Liquid Crystal Display(LCD)Battery : 3.7V/1500mACharging time : 4-5 hoursDust and water resistance : IP67Size & Weight : 136*70*37mm,250g
On Start Up, The Instrument Automatically Goes Through Complete Self Integrity Check,On Demand. The Press Of Sampling Switch Initiates The Sampling Through SuctionAnalysis And Digitally Displays The Results. “Hold Key” Enables Monitor/Analysis fora ParticularParameter of Interest
