Polari Meter
Product Details:

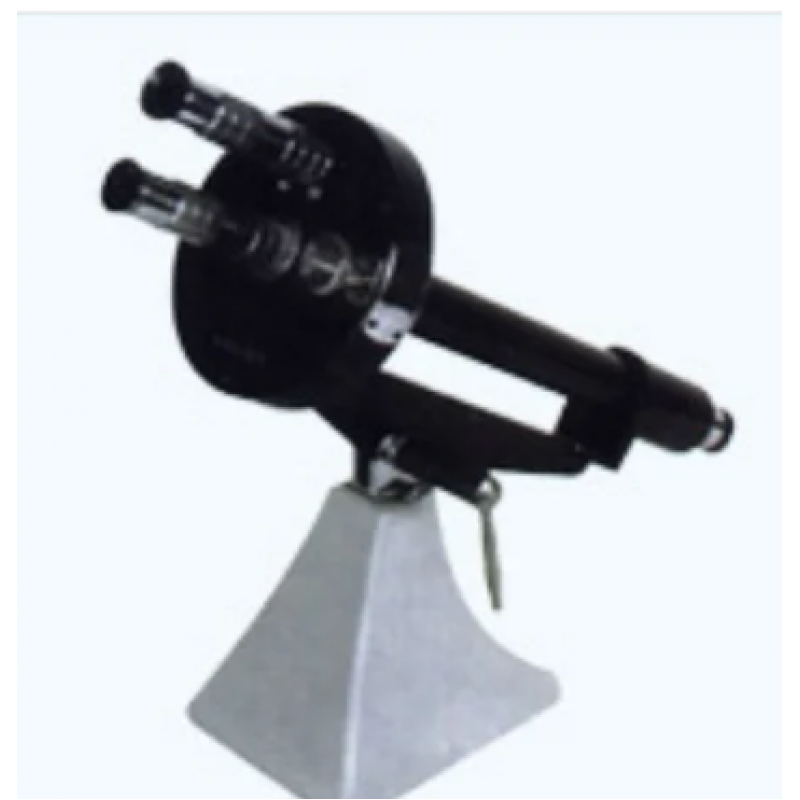

Specially designed polarimeter have a circular scales graduated in degrees is attached near to the analyzer. The movable vernier on the scale enables reading of optical rotation to sixty seconds. Worm and gear combines rough and fine adjustments. They are provided with half wave mica plate which has 3 parts field for easy setting adjustable half shadow angle, short focus telescope with precision lenses. The instrument can be used either with white light or sodium lamp light. The polarimeter tubes corning has a glass ¾ diameter bore which is attached with bulb in the center obviate troubles due to air bubbles with self centering rings incorporated. They have end covers with spare rubber washers and end discs.
Complete with a set of corning glass tubes 20 cms with C.P. fittings and beautifully spray painted in wooden case, accuracy ± 15 degree.
Polarimeter fitted with Bi quartz in place of mica, giving coloured distinction accuracy ±5 degree.
Polarimeter but fitted with half shade device accuracy ±2 degree
