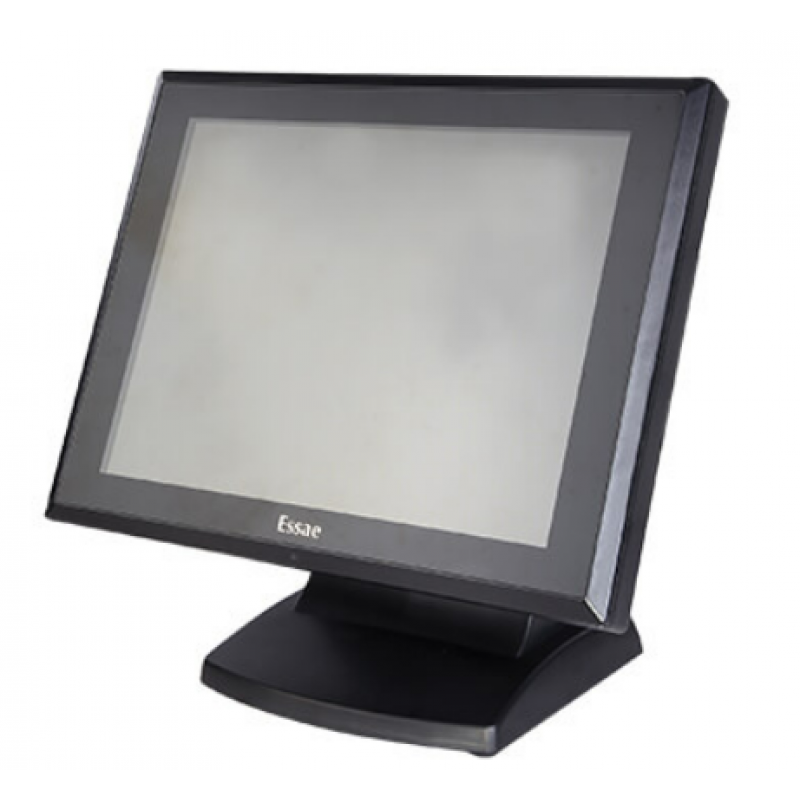

Point of Sale (POS) System-615

POS – 615 is a highly advanced POS system powered by the latest core i3/i5 processor. It is made to deliver exceptional performance even in the most demanding applications. It supports Windows 10 IOT Enterprise and Windows Embedded POS Ready 7 Linux.

Technical Specifications

Model	POS-615B	POS-615C
Processor	Intel Baytrail J1900 QUAD CORE 2.00 GHz processor Embedded, Low Power, FANLESS processor, 2 MB Cache memory	Intel Core i3 7th 3.40Ghz processor 3 MB Cache Memory	Intel Core i5 6th 2.20Ghz processor 6 MB Cache Memory
Chipset	Intel Baytrail J1900 with Integrated Graphics chipset	Intel H110 Chipset

Operator Display

Size	38.1 cm (15") TFT LCD with LED Backlight, Anti-glare
Maximum Resolution	1024 x 768
Brightness	350 nits
Touch Screen	Projected Capacitive Touch (PCAP) – True FLAT

Memory

System Memory	4 GB DDR3L RAM (expandable upto 8GB)	4 GB DDR4 RAM (expandable upto 16GB)
Storage Memory	128 GB Solid State Disk (SSD) or 500 GB HDD

External Interface ports

USB	6	5
Serial (DB9)	2	4
Network	1 x Gigabit LAN	2 x Gigabit LAN
Display Port	1 x VGA	1 x HDMI
Audio	1 x Line-In, 1 x Line-out
Factory options	Wi-Fi LAN module (Mini-PCIe)

Environmental

Operating Temperature	5°C ~40°C
Storage Temperature	-20°C ~ 55°C
Power Adapter	DC 12 V/5 A 60 W

Optional Accessories

Printer	High Speed POS Thermal printer, 82.5 mm paper, 220 mm/sec, auto-cutter (Serial+USB+LAN) interface
Cash Drawer	5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch
MSR	3 Track-OPOS Compliant, USB interface
Mounting options	VESA-compliant Wall Mount Kit
Dimension (W X D X H) (without any accessories)	4°C tilt angle :382 mm x 220 mm x 356 mm 84°C tilt angle :382 mm x 294 mm x 300 mm
Net Weight (without any accessories)	6.1 kg (approx)

Operating system

Operating System supported (Both 32-bit &64-bit versions)

Windows 10 IOT Enterprise 2016 LTSB Entry Windows Embedded POSReady 7 Linux (subject to confirmation)

Windows 10 IOT Enterprise 2016 LTSB Value Windows Embedded POSReady 7 Linux (subject to confirmation)
