Point of Sale (POS) System-415

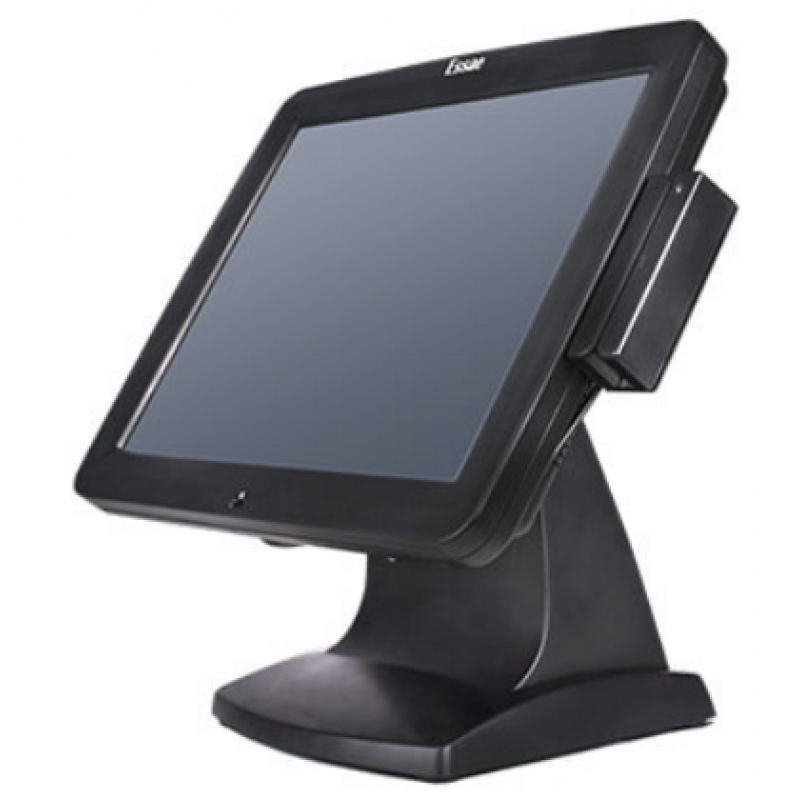

Essae Touch Screen POS System 415 has a powerful Intel QUAD CORE processor. A 64GB solid-state drive (SSD) and 4GB RAM deliver a High Performance-Value equation in high-traffic Retail & Hospitality environments. Designed and developed targeting the users' Restaurant billing software requirements and expectations, the combination of functionality and simplicity makes Essae POS 415 a unique solution for the Customers. Like other Essae Touch Screen POS solutions, POS 415 can also be used as a self-checkout (SCO) unit by the Customer.

Technical Specification

Processor

Processor

Intel Baytrail J1900 QUAD-CORE 2.00GHz processor Embedded, Low Power, FANLESS processor, 2MB Cache memory with Integrated Graphics chipset

Operator Display

LCD Size	38.1 cm(15") TFT LCD with LED backlight, Anti-glare.
Maximum Resolution	1024 x 768
Brightness	350 nits
Touch Screen	5-Wire Resistive

Memory

System Memory	4GB DDR3L RAM (Low Voltage)
Storage Memory	64GB Solid State Disk (SSD) or 500 GB Hard Disk Driver(HDD)

External Interface ports

USB	5 x USB (2 x USB3.0, 3 x USB2.0)
Serial	3 x Serial (1 x DC +12V powered)
Network	1 x Gigabit LAN, 10/100/1000 Mbps, RJ-45
VGA	1 x VGA (Independent), DB-9
Audio	1 x Line-In, 1 x Line-out

In-built Factory Options

Wireless Network

Wi-Fi LAN module (Mini-PCIe)

Environmental

Operating Temperature	5°C ~ 40°C
Storage Temperature	-20°C ~ 55°C
Power Adapter	DC 12V/5A 60W

Optional Accessories

Printer	High speed POS thermal printer, 82.5mm paper, Auto-cutter, 220mm/sec, Serial+USB+LAN interface
Cash Drawer	5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch
MSR	3 Tracks – OPOS Compliant, USB interface
Mounting options	VESA-compliant Wall Mount Kit
Dimension (W X D X H)	4°C tilt angle: 370mm x 220mm x 360mm 84°C tilt angle: 370mm x 290mm x 310mm
Net Weight (without any accessories)	5.6 Kg (approx)
Housing	MOC: ABS, Colour: Black with Sturdy Table stand
Operating Systems supported (both 32-bit & 64-bit versions)	Windows 10 loT Enterprise 2016 LTSB Entry,Windows 10 Windows POS Ready "7" Linux, as per specific request and confirmation only
