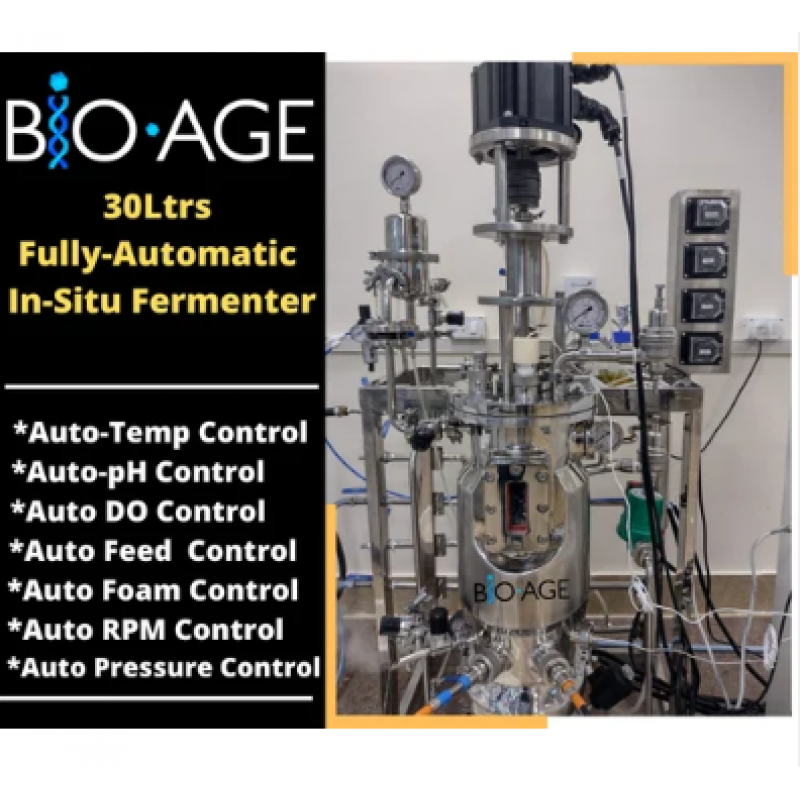

Pilot Scale Fermenter
Product Details:
Capacity | 30L and 200Liters |
Material | SS316L |
Automation Grade | Automatic |
Surface Finish | 220 grit finished and mirror polished Ra less than 0.8 micron |
Brand | "Bio-Age" |
Bio-Spin P Series of Pilot Scale R&D Fermenters designed and developed indigeneously for most reliable and economical fermentation for RNZ company at UAE -Abudhavi
Total Capacities: 50L and 200 Liters
Type | Whole SS316L vessel with SS304 Jacket In-situ sterilizable. |
Controls | Auto temperature/ RPM/ pH/ DO2 cascade control/ Antifoam/ Air flow/ auto sterilization through Modular/ Microcontroller/ PLC&PID Controls. Other probes for out gases etc available on demand. |
Drive | Top driven and direct coupled Motor with single/ double mechanical seal. |
Steam/ Air Filtration | 0.22μm PTFE filter cartridge with SS316L housing plus 0.45μm prefilter with SS housing. |
Software | Standard data acquisition software with RS-232-C serial port/ USB Interface to communicate with PC for trends/ graphs/ tabular form into Excel Format. Optionally SCADA software available for computer controlled fermenter operation. |
