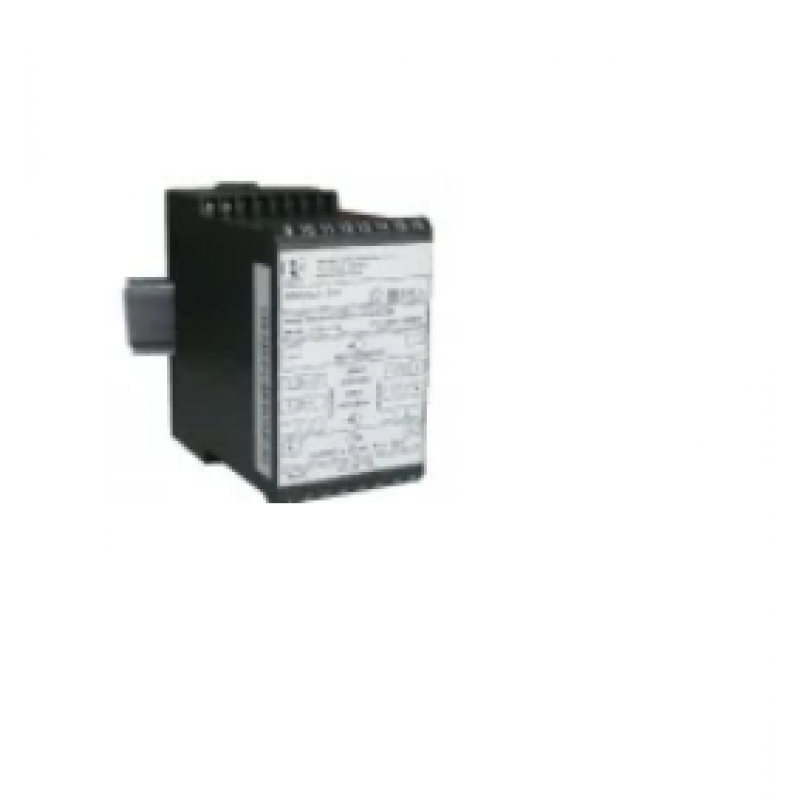

Phase Angle Transducer
Product Details:
Single Phase,3Ph,4W Balance Load, CT Sec : 1A or 5A , PT Sec : 10 to 500V), Aux Supply-AC -110/ 230/ 240/ 380V and DC -24-90V or 90-240V
Measuring output :
DC current signal ( load - independent ) or DC voltage signal
Measuring principle : Measurement of the zero crossing interval
Electric isolation between all transducer connection circuits/ Prevents interference voltages and currents being transmitted
Narrow housing, 70 mm / Saves space and therefore costs
Snaps onto a DIN rail or screws onto a wall or panel / Adaptable to the circumstances at the place of installation
The device fulfils the protection requirements of the EMC guidelines (89/336/EWG). The device bears the CE symbol for EMC
Screw terminals suitable for multistrand or solid wires/Easy wiring without problems
