Ph Contrast Microscopy
Product Details:

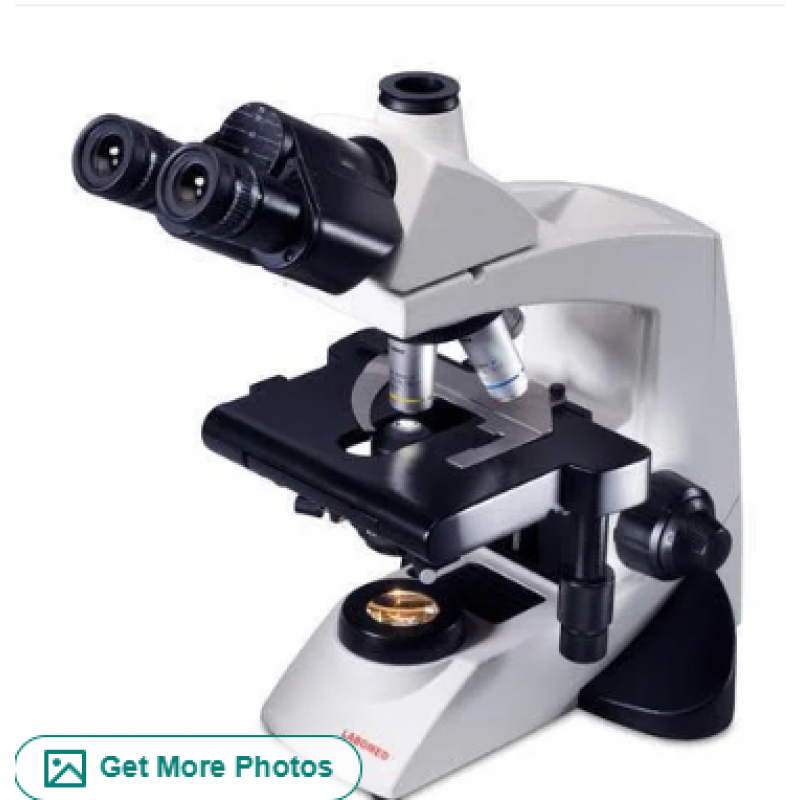

Owing to our years of industry experience and precise knowledge of this domain, we are offering an outstanding assortment of Lx500 ph Contrast Microscope.
General Specifications:
High-grade phase plan achromatic, objectives & WF Eyepiece.
Phase contrast kit compressing of phase telescope, phase turret, green & blue filters.
All moving parts on ball bearing guides to give highly sensitive & smooth working.
Technical Specifications:
Stand: Single mold sturdy stand with anti rust materials.
Extended base with hand rests for enhanced stability and comfort.
Vacuum coated prism for better transmission and anti fungus character.
Eyepieces: Wide Field focusable paired eyepiece WF10x/22mm with foldable eye guard, anti-fungus coating. graduated ring for a setting of individual eye diopter.
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip, anti-fungus coating.
Sub-Stage Phase Turret: Phase Contrast Kit comprising of phase telescope,
Adapter for phase telescope, center able phase turret, green and blue filter.
Focusing: Co-axial coarse and fine focusing on ball drive system for extremely smooth operation.
Illumination: LED illumination with variable illumination control.
Rechargeable lithium Ion battery provides long hours of battery backup in case of electricity failure.
Illumination: Halogen 6V-20W illumination with variable illumination control.
Electrical: For LED input 180v-250v AC or for HL Input 220v-240v AC, with removable imported cord
Packed in a styrofoam box with operation manual, dust cover, cleaning cloth, power cord.
