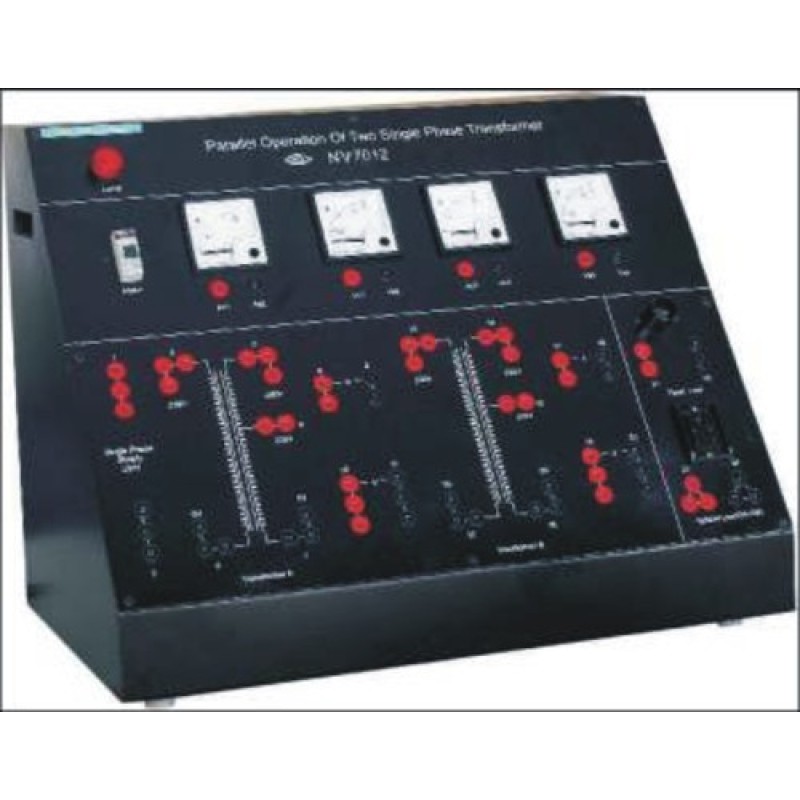

Parallel Operation of Two Single Phase Transformer Trainer

Product Details:

Brand	Vinamra Enterprises
Phase	1
Frequency	50 Hz
Ammeter	10 A
Transformers	1kV
Model No	VE-3811
MCB	10 A (Single Phase)
Primary Voltage	0 - 230 V
Secondary Voltage	0-200-230V
Voltmeter	500 V (2 Nos)(MI)

Parallel Operation of Two Single Phase Transformers has been exclusively designed to demonstrate the fundamental concepts of parallel connections of two or more single phase transformers. You can load on the transformer more than the rating of the individual transformer then analyze the Parallel operation phenomenon. Students can learn about thesignificance of connecting the two transformers in parallel and its effect on the system. Additionally one can also learn the polarity in the transformers. The training system helps to get fully acquainted with the functioning of a single phase transformer. The varied scope of learning makes the subject completely understanding and interesting.

Features:

• Exclusive and attractive designed panel
• Stand alone operation

• Designed by considering all the safety precautions
• Diagrammatic representation for the ease of connections

• On board high quality meters

Scope of Learning:

• Study of polarity test under two single phase transformers
• Study of parallel operation of two single phase transfromers under equal voltage ratio
• Study of parallel operation of two single phase transformers under unequal voltage ratio.


Additional Information:

• Item Code: VE-3811
• Pay Mode Terms: T/T (Bank Transfer)

• Production Capacity: 200
• Packaging Details: You can contact us or write to us for any product related query.
