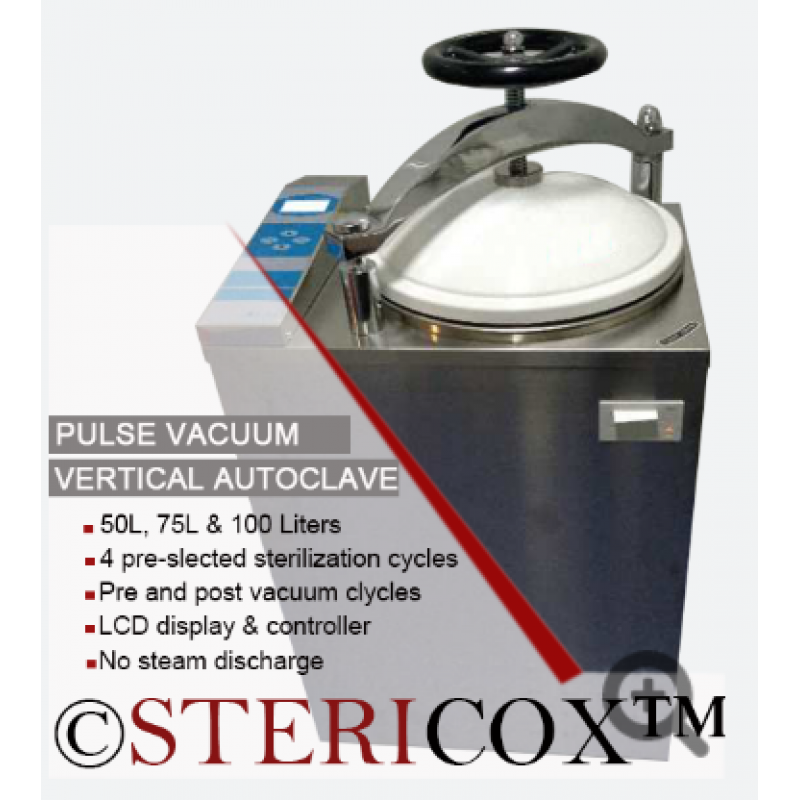

PULSE VACUUM VERTICAL AUTOCLAVE

Our FAVE series vertical autoclaves are fully automatic sterilizers with pre and post pulse vacuum cycle features. These high pressure vertical autoclaves are designed for applications that need high performance sterilization in laboratory and hospitals for day to day sterilization and they are even successful for disinfection and sterilization under epidemic conditions such as corona virus (covid) etc. These autoclaves feature 4 cycle programs for glass ware, instrument, liquid and dressing. Most important feature of FAVE series vertical autoclaves is vacuum pump, which is used for pre vacuum for air removal and for post vacuum moisture removal for fast drying. These high pressure vertical autoclaves made of stainless steel and equipped with LED smart controller. Lid lock is hand wheel type which is more convenient to open and close the lid. There is also steam collector tank fitted inside the machine; therefore, not steam discharge after sterilization. This feature makes this series most favorable for clean room areas.

FEATURES & BENEFITS

• 4 pre-selected cycle programs
• No steam discharge in open area
• Imported water ring vacuum pump
• LCD controller for easy operation
• Immediate steam & efficient air removal
• Complete drying with post vacuum
• Fresh and waste water tanks in-built

TECHNICAL SPECIFICATIONS

Model	FAVE50	FAVE75	FAVE100
Inner dimensions	340 x 550 mm	400 x 600 mm	440 x 650 mm
Volume	50 Liters	75 Liters	100 Liters
Working pressure	0.22 Mpa
Working temperature	0 to 134°C
Timer	0 to 99 minutes
Construction	Stainless steel 304
Door lock	Hand wheel type
Gasket	Joint less silicone rubber gasket
Basket	2 Nos. wire mesh baskets
Controller	LCD controller
Operation	Fully automatic operation
Programs	4 preselected programs
Vacuum cycle	Pulse vacuum cycles
Air filter	0.2µ bacterial air filter
Vacuum pump	Included
Power supply	220 Volts 50Hz
