PLC Trainer

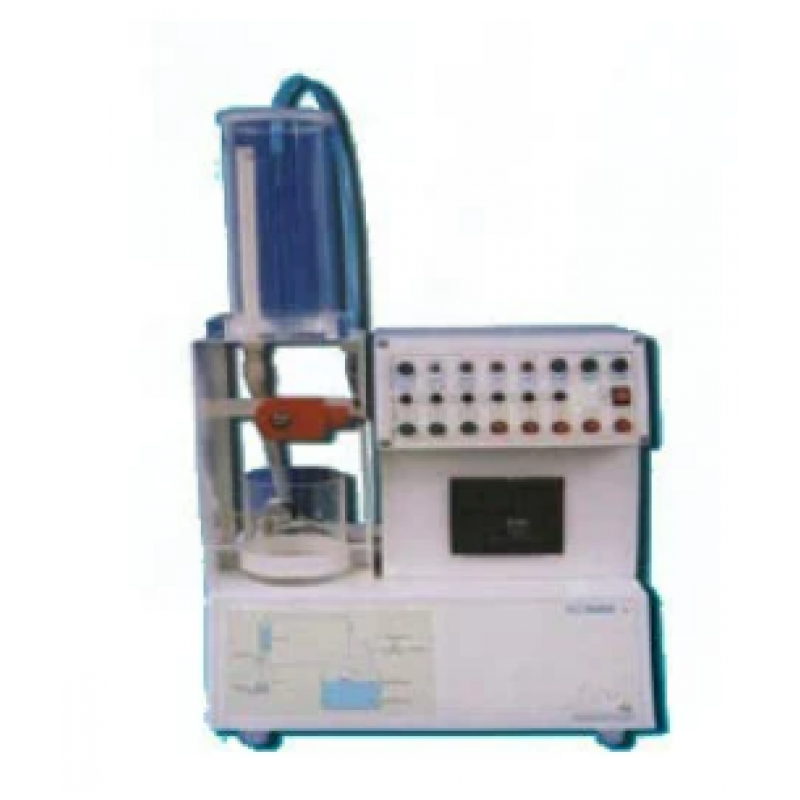

PLC Trainer set up is designed to demonstrate working capabilities of PLC, its programming and ladder logic. The setup is working model of water filling system consisting of different types of inputs (6) /outputs (3) like float switches, micro switch, solenoid valves, pump and push buttons. The PLC unit can be interfaced with computer through serial communication for software programming. It can also be operated in simulation mode to develop and study different ladder logic. The setup is tabletop mounted with in built control module.

Features:

• PLC study with different inputs/outputs
• Real process and simulation mode
• Sample ladder logics
• Compact set up

Range of experiments:

• Study of PLC inputs and outputs
• Study of sample ladder logics
• Study of ladder logic for water filling system
• Developing and testing ladder logics in simulation
• Various ladder logics can be written are:
• Operate pump using single toggle switch
• Operate pump using two different push buttons
• Study & use of timer in ladder diagram
• Study & use of counters in ladder diagram
• Study & use of timers and counters in ladder logics

Specifications:



• Product PLC trainer
• Product code 321
• Supply tank SS304, reservoir for water
• PLC unit 8 inputs, 6 outputs
• Pump Fractional horse power, type centrifugal
• Solenoid valve Size 1/4" (2 nos.)
• Float switch Magnetic (2 nos.)
• Control module With push buttons and indicators
• Overall dimensions W 400 x D 500 x H 700 mm
• Shipping details Volume: m3, Gross weight: kg

Utilities required:



Electric supply:

• Provide 230 /- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral – Earth voltage less than 5 VAC.)
• 5A, three pin socket with switch for pump

Water supply:

• Provide clean and soft water @100LPH

Computer:

• IBM compatible with standard configuration

Support table Size:

• 800Wx800Dx750H in mm
