PLC Based Water Level Control Module
Process Control Trainers
SPECIFICATION
Order Code - 52248

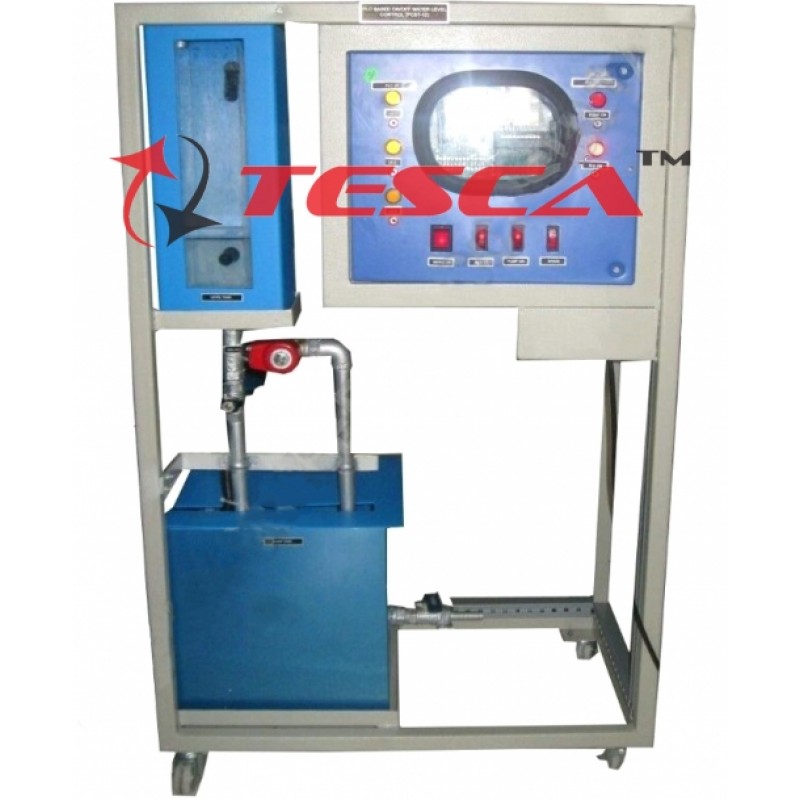

PLC Based Water Level Control Module
The PLC Based Water Level Control Module gives an idea regarding the usage of Programmable Logic Controllers in an industrial environment; it considers an example of Level Control Process.
Features:
Turnkey system.
Two line display on PLC unit for programming.
Side mounted miniature level switches (3 no.) for water level position Inputs to PLC unit.
Solenoid valve & pump control from digital outputs on PLC (2 no.)
MS Powder coated tabletop frame containing water level module.
Ladder diagram programming facility on PC.
Front panel for display of digital input / output status.
Electrical control panel for simulation of digital inputs.
Computerized control system trainer (optional).
Caster wheel mounted movable frame
PLC Based Water Level Control Module
