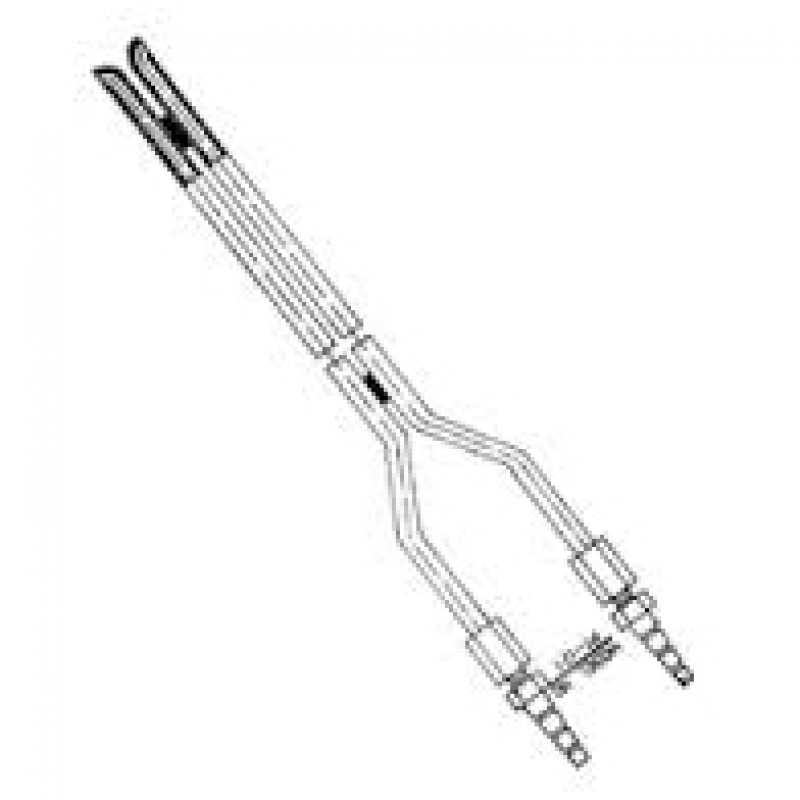

PITOT TUBES : S-SHAPE

Product Details:

S-Shape Pitot tube Recommended specifically for flow / velocity measurement of dirty, particulate laden air or gas streams. Typical in environmental testing, large I.D. (1/4"or more) tubing resists chocking under harsh, sooty conditions. Again tube can be cleaned easily by passing air or water through it. Total & static pressure tubes are precisely aligned & arc welded together at every six inch,for maximum accuracy, strength and durability. 1/4" BSP (F) connections easily adapt to any type of pipe or tubing. Permanent engraved insertion depth graduation (optional) facilitates accurate positioning.
Features :

a) Long lasting S.S. construction

b) 1/4" BSP

c) Permanently welded
d) Rated for upto 815°C (1500°F) Temp.
e) Required adaptors, tubing or piping can be provided.
(F) pressure connections

Standard :
a) MOC-304 S.S.
b) Pipe -O.D. 3/8", I.D. 1/4"
c) Pressure Connections 1/4" BSP (Female)
d) Process connection nil
(e) other required length, M.O.C., O.D. & I.D. Pipe, pressure connections can be provided

Optional :
1) Engraved insertion depth marking
2) Nozzel or other process connection adaptors
3) Isolating valves
4) Connecting Hose or Tubing
5) D.P. Indicating Instrument
6) Any other size, material of construction or tube as per your given drawing can be made & supplied..
