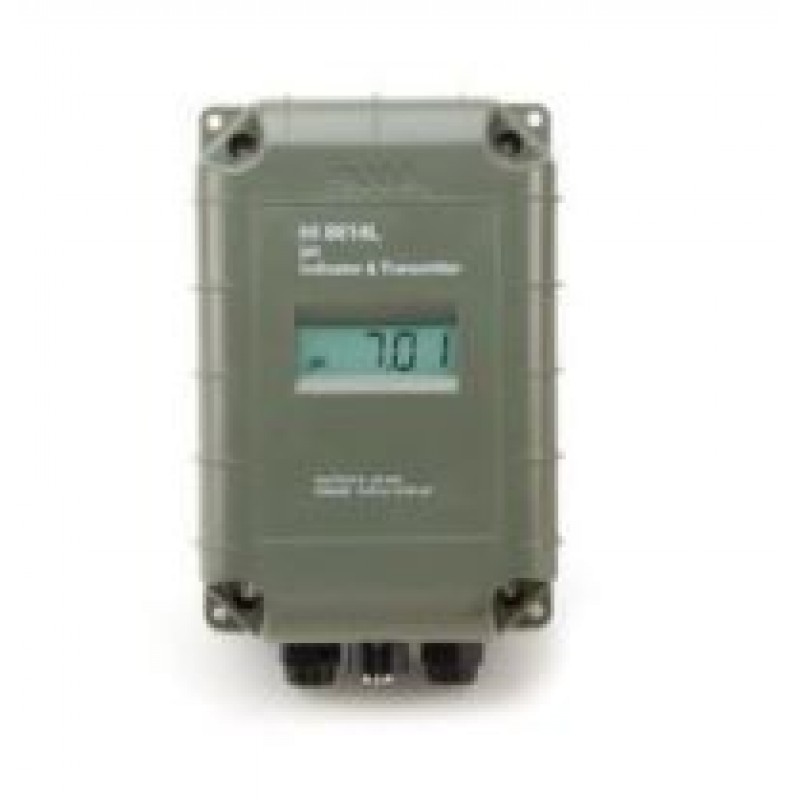

PH Transmitter with Galvanically Isolated Meter
Product Details :
Product Code : HI-8614LN
We are counted among the reputed business entities, engaged in manufacturing and supplying PH Transmitter with Galvanically Isolated Output. It is a water-resistant pH transmitter is designed to be used with a standard high impedance pH probe with BNC connector. We use finest quality materials and components to manufacture this device. Clients can avail this device from us in different technical specifications as per their requirements. We offer this PH Transmitter with Galvanically Isolated Output at cost effective prices.
Features:
- Compact design
- Easy to install
- Longer working life
Further Details:
The HI 8614LN is a water-resistant pH transmitter is designed to be used with a standard high impedance pH probe with BNC connector. The signal is then processed by a special high-impedance amplifier, which transmits an output current directly proportional to the input signal but independent of changes in load or cable capacitance.
Product Details:
- Water resistant
- Loop powered
- Automatic Temperature Compensation
- LCD Screen
| Range | 0.00 to 14.00 pH; 4–20 mA |
| Resolution | 0.01 pH; 0.01 mA |
| Accuracy @ 20°C | ±0.02 pH; ±0.02 mA |
| Calibration | offset: ±2 pH; ±2.2 mA; slope: 86 to 116%; ±0.5 mA |
| Temperature | fixed or automatic from 0 to 100°C (32 to 212°F) with HI 76608 probe |
| Compensation | |
| Input Impedance | 1012 Ohm |
| Recorder Output | 4-20 mA (isolated) |
| Protection | IP65 |
| Power Supply | 20-36 VDC |
| Load | max 500 Ohm |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions | 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’) |
| Weight | 1 kg (2.2 lb.) |
