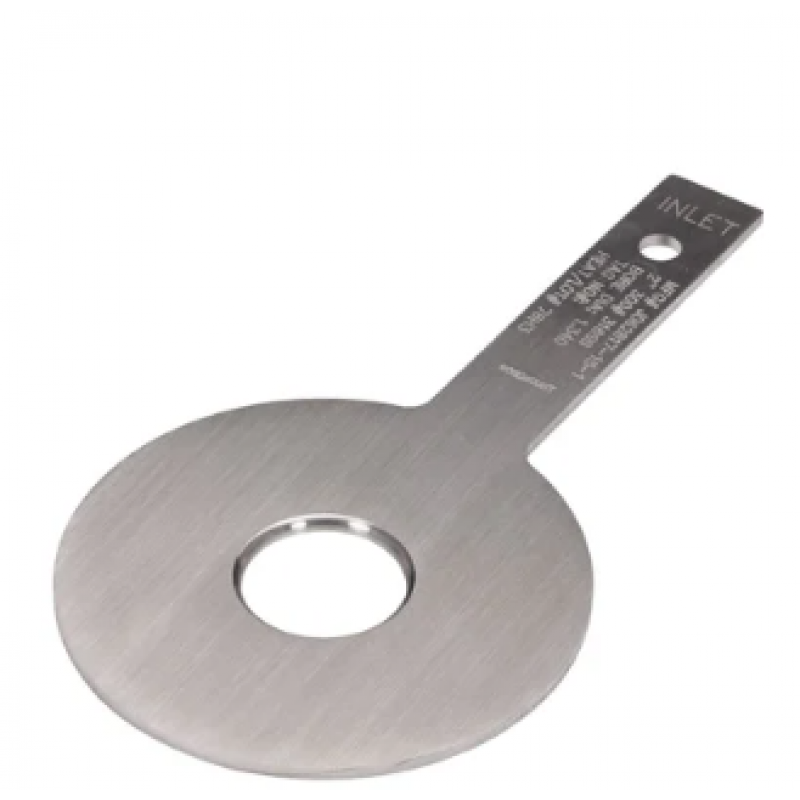

Orifice Plate
Product Details:

Brand	ELECTRONET
Material	AISI 316, AISI 304, Hastalloy C, Monel, Other as per requirement
Line Size	15 NB to 1000 NB (1/2 inch to 40 inch)
Accuracy	+/-1% of F. S.
Usage	Industry

Electronet series Orifice Plate is the most common differential pressure primary flow element. It is based on proven technology. It has no moving parts and is suitable for high temperature and pressure applications. Orifice plates are recommended for clean liquids, gases and low velocity steam flows. Flow measurement using orifice plates requires the accurate location of up stream and downstream pressure tapping. Various types of orifice carrier assemblies are available to suit a wide range of applications.
