Video Metrology

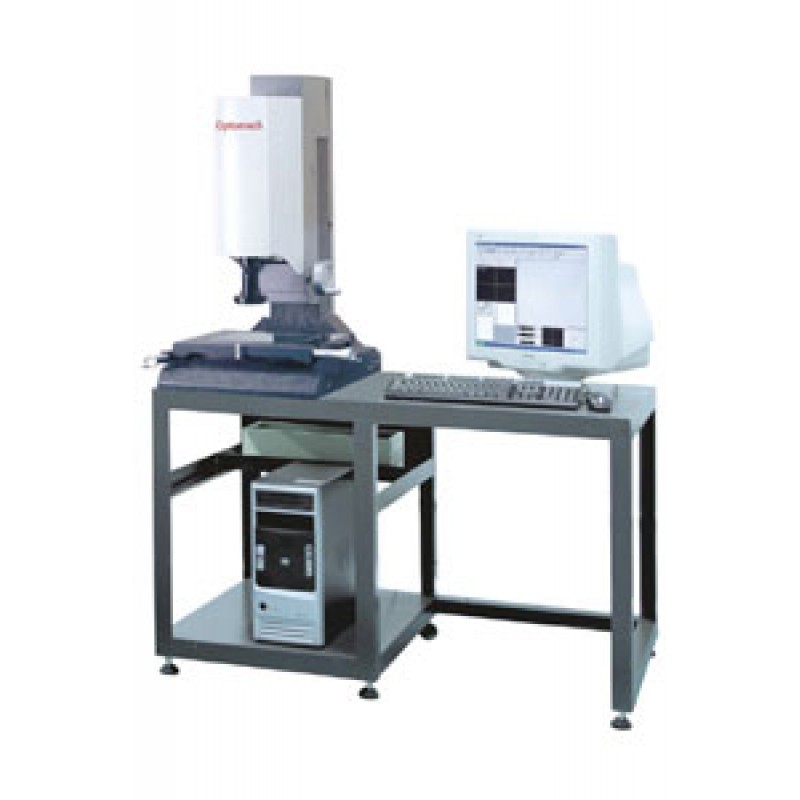

VIDEO METROLOGY

Product Details :

Model : VPP-ME


Specifications :

MODEL NO.VPP-ME 2010VPP-ME 2515
X Y Work Stage
Size of Top Plate404 x 228 mm450 x 280 mm
Traverse: X & Y axis200 x 100 mm250 x 150 mm
Load Capacity25 Kg
Z axis Travel150 mm
Base and columnMade of cast Iron
Video System
Imaging Device1/3 CCD video camera
LensHigh Resolution Tele-centric Zoom Lens
Magnification Range25x - 145x
Illumination System
ProfileLED Array placed below
SurfaceRing LED Brightness Manually controlled
Measurement System
Linear Measurement X Y Z AxisLinear Encoders 1 u LC
Measurement Software2D Measurement Software with Programming
SPCFacility to transfer to Excel and make reports
Measuring Accuracy(3 + L/100) microns
ComputerLatest Computer with 17" LCD Monitor Windows XP OS
Optional Accessories0.5x and 2x Lens
Physical Specifications
Net Weight110 Kgs120 Kgs
Overall Dimensions700 x 600 x 900 mm
