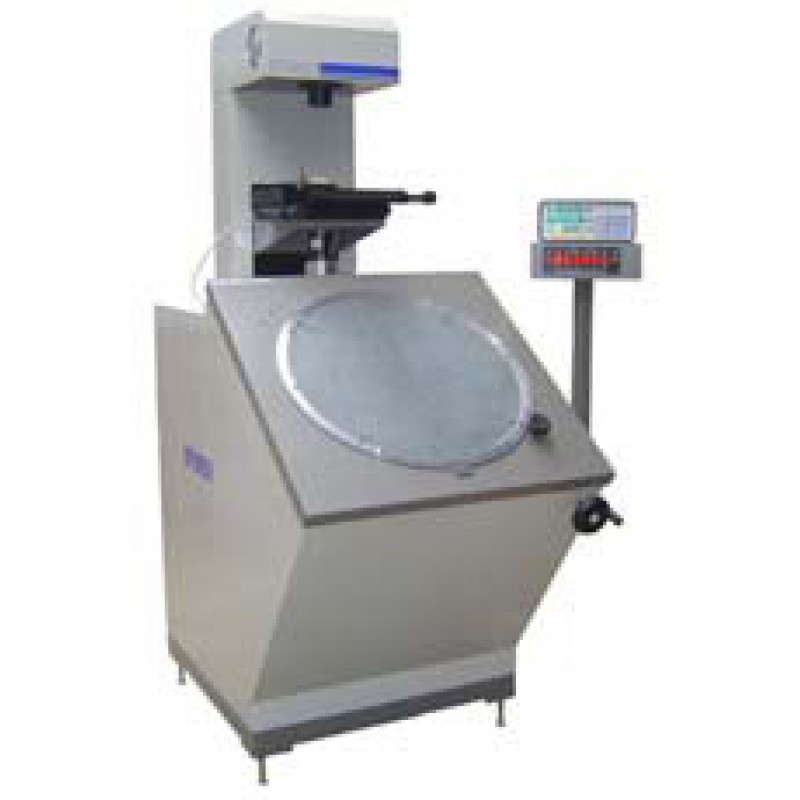

Vertical Profile projector

Product Details :

Model 600V

Screen :

• Glass screen - Ø 300mm with crosslines

Magnification :

• 5x, 10x, 20x, 50x, 100x Telecentric Lenses

Workstage :

• Size of Top Plate - 350mm x 260mm
• Measuring Traverse - X:200mm, Y: 100mm
• Working Area - 200mm x 130mm
• Load Capacity - 25 kgs
• Max Diameter - 175mm

Digital Measuring Systems :

• Linear - 3 axis Simple DRO with Linear Encoders 1µ LC
• Angular - 360º rotary encoder LC of 1' of an arc. With digital display Tungsten Halogen lamps

Illumination Systems :

• Profile - 24V, 150W
• Surface Illumination - 24V, 150W - 2 Nos

Weight :

• 125 kg (Unpacked)

Dim :

• (L x W x H) 1,040 x 860 x 1,676
