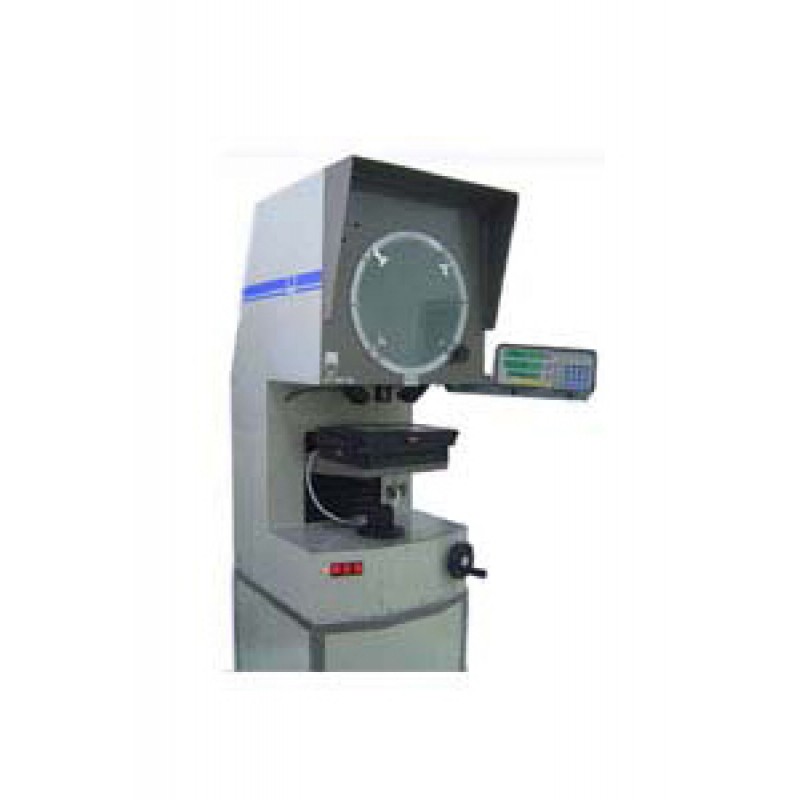

VERTICAL PROFILE PROJECTOR

Project Details :

Model 300TE

Screen :

• Glass screen - Glass screen Ø 400mm with crosslines

Magnification :

• 5x,10x,20x,50x,100x Telecentric Lenses

Workstage :

• Size of Top Plate - 350mm x 210mm
• Measuring Traverse - X:200mm, Y: 100mm
• Working Area - 205mm x 105mm
• Load Capacity - 20 kgs
• Max Diameter - 150mm

Digital Measuring Systems :

• Linear - 3 axis DRO with Linear Encoders 0.005mm LC
• Angular - 360º rotary encoder LC of 1' of an arc. With digital display Tungsten Halogen lamps

Illumination Systems :

• Profile - 24V, 150W
• Surface Illumination - 24V, 150W - 2 Nos

Weight :

• 100 kg ( Unpacked)

Dim :

• (L x W x H ) 700 x 480 x 1025
