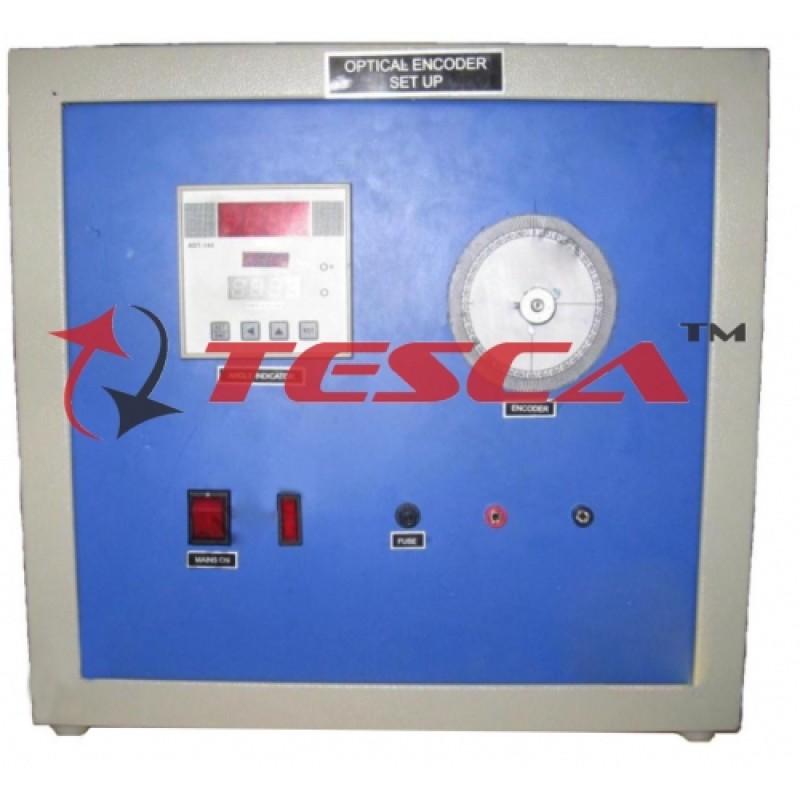

Optical Angle Encoder Setup For Angular Position/Displacement Measurement
Process Control Trainers
SPECIFICATION
The Setup for Optical Rotary Encoder (52274) gives an idea regarding the application of Optical Rotary Encoders in Industrial Environment.
Features
Compact Ergonomic Design.
User Friendly, Self Explanatory Systems.
Robust Construction.
Enhanced Electrical Safety Considerations.
Training Manuals for Operation Ease.
Inbuilt Safety Measures to avoid improper usage.
Provision to give angular displacement to the encoder shaft.
Compatible with analog PLC Trainer.
Experiments
Study of Optical Rotary Encoder.
Services Required
Electric Supply of 230 VAC.
Optical Angle Encoder Setup For Angular Position/Displacement Measurement
