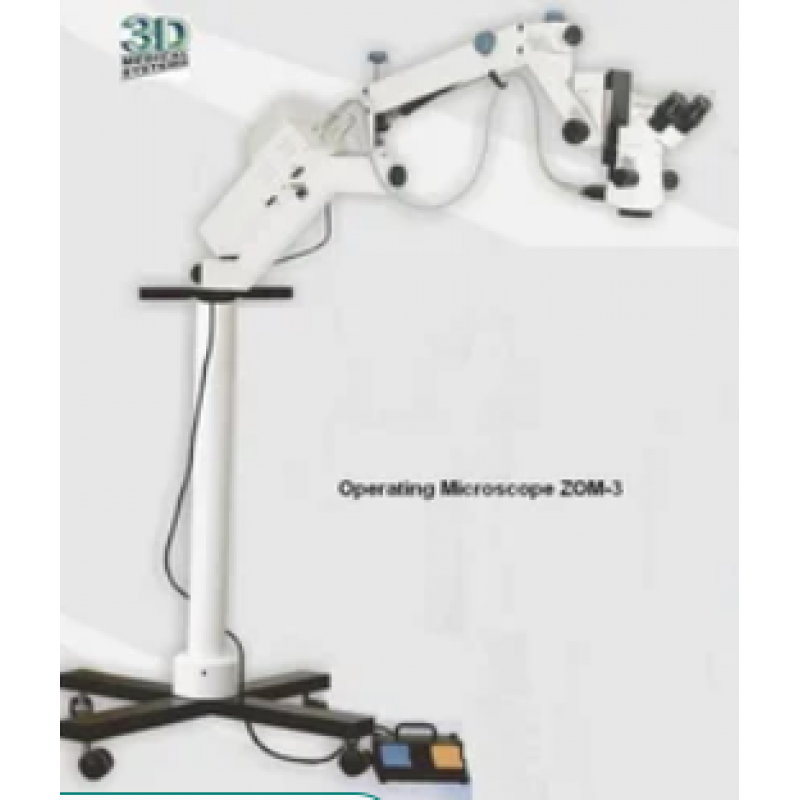

Ophthamlic Microscope

Description: innovative design, highly versatile with latest ‘3d medisys’ zoom optical system on floor stand with cold light co-axial illumination & foot focusing

Magnification: 5 x to 20 x (zoom)

eye-pieces: swf 10x (paired) 45degree inclined binocular tubes, ipd range 55-75mm

working distance: f=200 mm objective lens.

illumination: 15v/150w twin halogen lamps with 100% coaxial through-the-lenses focused fiber-optics light guide 1. 5 meter, white bright light more than 80,000 lux when maximum.

arm: counter balanced pantographic arm with 320degree rotation. Foot operated z-axis motorized focus controls.

floor stand: mobile floor stand on caster wheels for easy handling and absolute stability.

power supply: ac 220-240 volts (110 volts on request).
