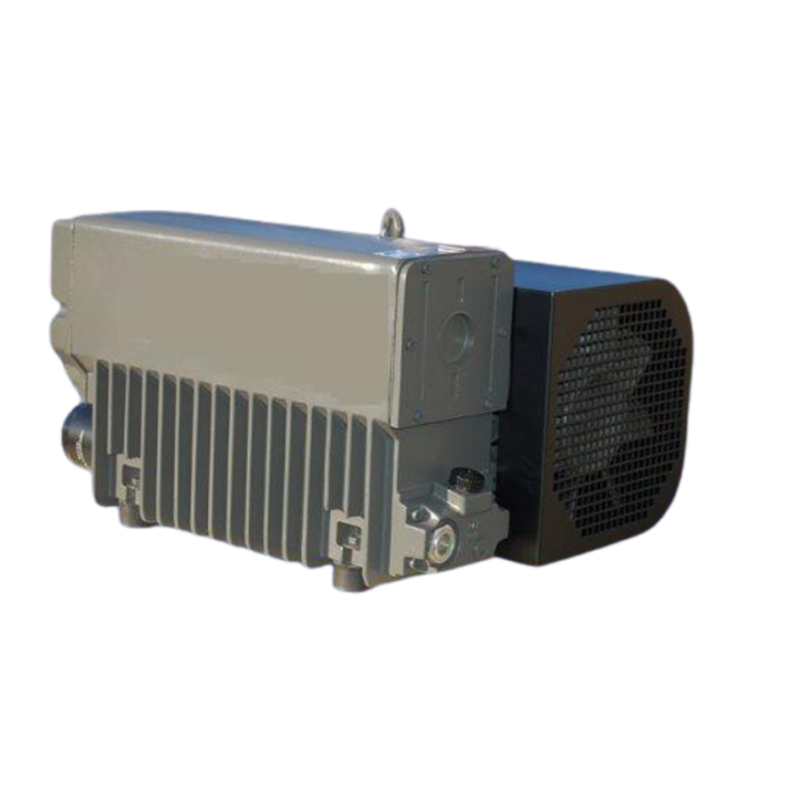

OIL LUBRICATED VACUUM PUMP
APPLICATIONS:-
These models are quite versatile and find their applications in Pharmaceutical & Chemical Industries for Distillation, Evacuation & Filtration and is suitable for host of other general Vacuum applications like Holding, Conveying, Glass Blowing, Lamination, Labeling, Paper Feeding, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing & Food Processing etc.
These models are quite versatile and find their applications in Pharmaceutical & Chemical Industries for Distillation, Evacuation & Filtration and is suitable for host of other general Vacuum applications like Holding, Conveying, Glass Blowing, Lamination, Labeling, Paper Feeding, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing & Food Processing etc.
Advantages
- High Pumping Speed
- High Water-Vapour Tolerance
- Dynamically Balanced Rotor
- Built in Oil Circulation System
- Air Cooled
- Built-in Anti-Suckback System
- No Oil Mist / Fumes
- Low Noise Level
- Low Power Consumption
- High Pumping Speed
- High Water-Vapour Tolerance
- Dynamically Balanced Rotor
- Built in Oil Circulation System
- Air Cooled
- Built-in Anti-Suckback System
- No Oil Mist / Fumes
- Low Noise Level
- Low Power Consumption
ALL CATEGORIES
SPECIFICATIONS
STANDARD MODELS
(Ultimate vacuum at the intake with McLeod Gauge)
Models Displacement m 3 /hr Vacuum in M.Bar Oil Required In Ltrs. Motor H.P. Motor RPM SV- 20-OL 20 0.5 0.850 1 1440 SV-25-OL 25 0.5 0.850 1 1440 SV-30-OL 30 0.5 1 1.5 1440 SV-40-OL 40 0.5 2 2 1440 SV-65-OL 65 0.5 3 2 1440 SV -100-OL 100 0.5 4 3 1440 SV -150-OL 150 0.5 5 5 1440 SV-200-OL 200 0.5 6 7.5 1440 SV-300-OL 300 0.5 7 10 1440
| Models | Displacement m 3 /hr | Vacuum in M.Bar | Oil Required In Ltrs. | Motor H.P. | Motor RPM |
|---|---|---|---|---|---|
| SV- 20-OL | 20 | 0.5 | 0.850 | 1 | 1440 |
| SV-25-OL | 25 | 0.5 | 0.850 | 1 | 1440 |
| SV-30-OL | 30 | 0.5 | 1 | 1.5 | 1440 |
| SV-40-OL | 40 | 0.5 | 2 | 2 | 1440 |
| SV-65-OL | 65 | 0.5 | 3 | 2 | 1440 |
| SV -100-OL | 100 | 0.5 | 4 | 3 | 1440 |
| SV -150-OL | 150 | 0.5 | 5 | 5 | 1440 |
| SV-200-OL | 200 | 0.5 | 6 | 7.5 | 1440 |
| SV-300-OL | 300 | 0.5 | 7 | 10 | 1440 |
