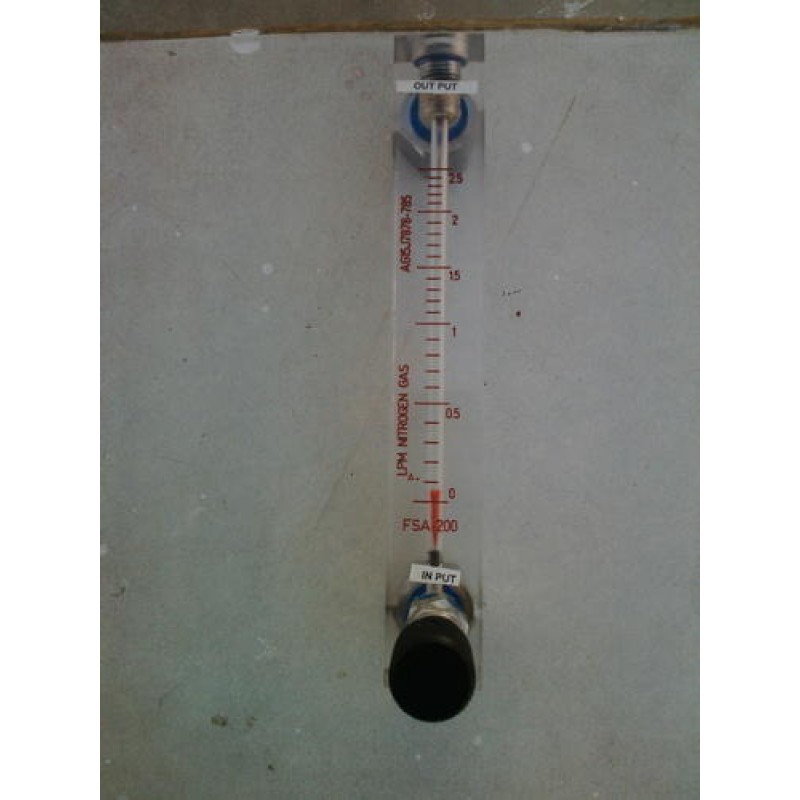

Nitrogen Gas Flow Meter

Product Details :

Owing to our expertise in this domain, we are engaged in manufacturing and supplying a wide range of Nitrogen Gas Flow Meter.

Technical Specification :

• Item: Acrylic Body
• Flow Range: 0-2.5 LPM
• Least Counts : 0.1 LPM
• Nitrogen Gas Sp.Gravity: 0.967
• Tempetature: 27 deg c
• Design Pressure: 2 kg/cm
• SS-304 Metering Tube: Acrylic Packing: Neoprene Connection: 1/4" (customer requirement) BSP 'F' With Needle Valve
• Float Material: SS-316 CC
• Distance: 159 MM
• Directin of Flow: Vertical Accuracy: 2% of FSD

Uses:

• Use for Carbon Black Content (CBC) Test.
• Flow meter covered the tests as per IS ,ASTM D

Features :

• Optimum functionality
• Superior finish
• Easy maintenance
