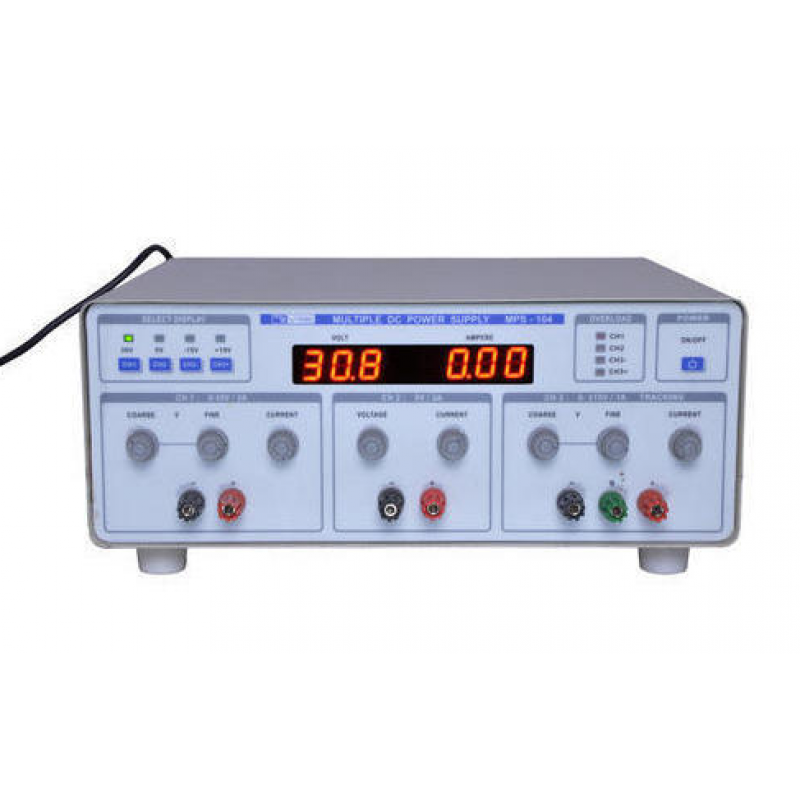

Multiple DC Power Supply (MPS-104)

Usage/Application	Electronic Instruments
Output Voltage	MULTIPLE
Input Voltage	230 V AC
Maximum Input Voltage	230
Design	Compact
Display Type	Digital
Warranty	1Year
No Of Channel	4 CH
Country of Origin	Made in India
Brand	Unitec
Model Number	MPS-104

Dc regulated power supply are constant voltage, current limit type supplies have high regulation for load & line voltage  variation. The supply can be use in independent and tracking mode. The supply are protected against short circuit, over load. The output, current can be limited to any value from 0 to maximum.
technical  specifications
input voltage : 230 v + 10 % ac 50 hz. Output voltage / : a) - 0 - 30 v dc / 2amp current                 b) - + 15v dc  / 1amp load regulation : +  0. 05% from no load to full load. Line regulation : +  0. 01% for + 10% variation in
