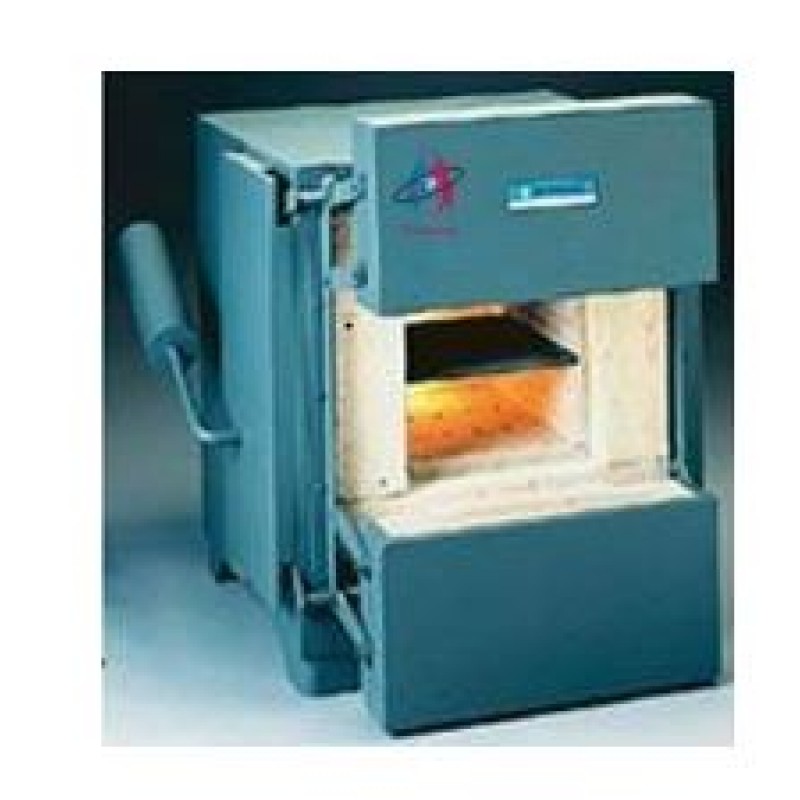

Muffle Furnace
Product Details:
Furnace Maximum Temp.950C Working Temp.900C. The casings are made of thick Stainless Steel Sheet reinforced with screw joints and welding wherever necessary. Heating chamber consisting of rectangular horizontal shape totally enclosed muffle baked at 15000C. Heating elements made of Kanthal wire special high temperature alloy and completely surrounded on the heating chamber, assuring the most uniform distribution of heat and protect heating elements against damage and chemical deterioration and are highly efficient. Light ceramic insulation provide in to the furnace body which avoids loss of energy. All furnaces are equipped with a dependable indicator pyrometer heaving a scale calibrated in 25 increments to 1200C . Pyrometer is equipped with chromel alumel thermocouple.
Temperature: the furnace can be operated continuously up to 900C. temp is controlled by sun Vic energy regulator fitted in front of the furnace with two indicating lights The control panel consists of temp control regulating knob with two long life neon lights which glows while the furnace is ‘ON’ the apparatus is complete which one pyrometer . thermocouple , silver thermal fuse , 2 meter main lead with power plug to work on 220/230 V AC
Muffle size                                            rating
100X100X225mm                             1.6KW
125X125X250mm                             2.0KW
150X150X300mm                             3.5KW
175X175X300 mm                            5.0KW
200X200X300mm                             5.0KW

FURNACE HIGH TEMP.
Furnace Muffle high temp Temperature up to 1400°C digital/analog, silicon carbide rod for heating the furnace. The casing is made of thick SS reinforced with riveting screw joints and welding whenever necessary heating zone consisting of rectangular horizontal shape totally enclosed ceramic muffle. Heating is done by silicon carbide rods assuring the most uniform heat. Light weight insulation is cast permanently into the furnace body which avoids loss of energy .furnace is equipped with a dependable digital controller calibrated 16000C and is equipped with PT/RH thermocouple.
Temperature :
The furnace can be operated continuously up to 1400°C and maximum 1500°C. Temp. is controlled in front of the control panel with two indicating lights. The control panel is provided separately and consists of temp controls with two long life neon lights which glow while the furnace is “ON”. Provided with volt meter ammeter to show flow of current the apparatus is complete with main lead with power plug to work on 220/230V AC.
