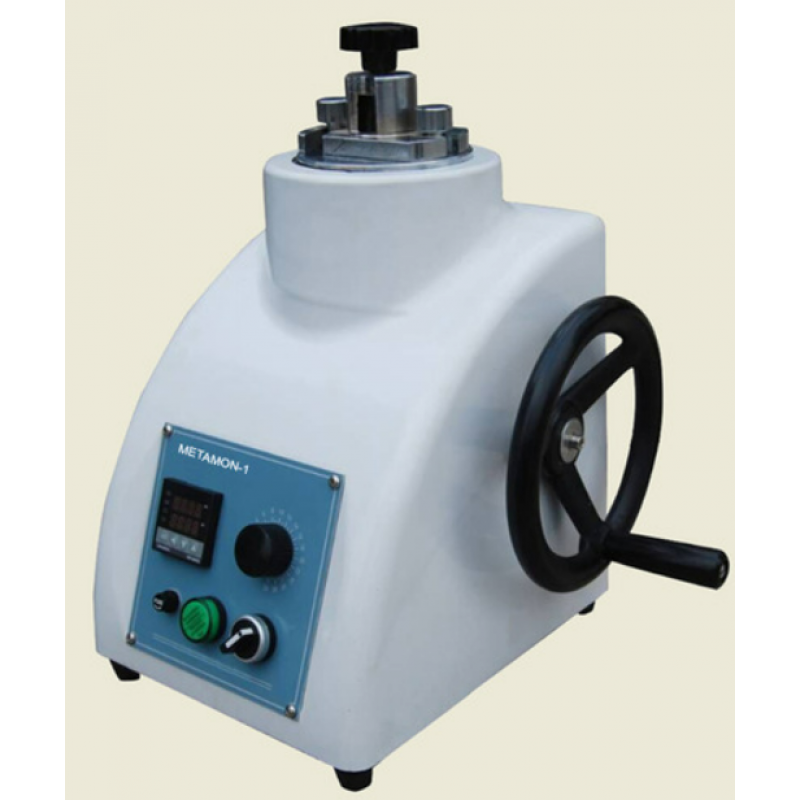

Moulding Machine

Product Details:

Clamping Way	Mechanical
Capacity ( ton per day)	200 to 250

The mounting press is a mechanical type machine. By turning the hand-wheel of the machine, a couple of bevel gear is rotated to drive the screw rod which in turn pushes/pulls the lower die up and down along the mould sleeve. The thermo set plastics together with specimen being mounted is formed under heated conditions. During this process the pressure is self adjusted by a spring fixed inside the machine. A signal light is used to indicate the pressure level.

                                                                                                                       The mounting press is equipped with a digit temperature controller to establish real-time temperature meanwhile, a timer is equipped to realize the semi-automation of sample – making, while obviously increasing working efficiency. For each specimen-mounting, 8-10 minutes is enough and a mirror-like specimen can be acquired.



SPECIFICATION











DESCRIPTION	S.E-22	S.E-30	S.E-45
Specimen Pressing Size	Ø 22x15mm	Ø 30x15mm	Ø45x15mm
Heater Capacity	650W 220V
Adjustable Temperature Range	0 - 400ºC
Power	15% 220V 50Hz voltage fluctuation less than + 15%
Overall dimensions	340mm x 270mm x 400mm
Weight	25 Kg. (approx.)
