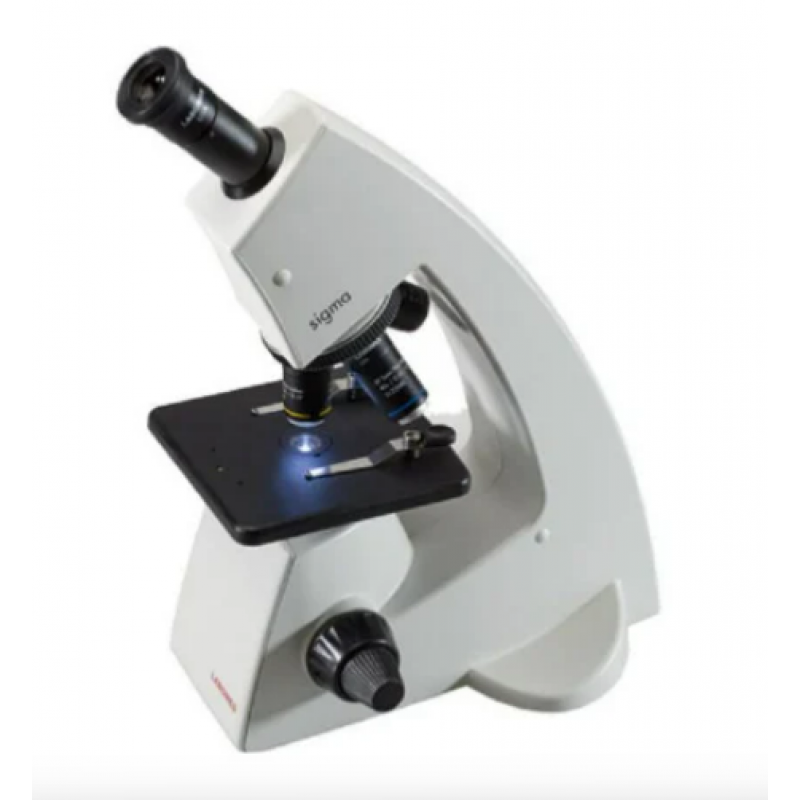

Monocular Microscope Model Sigma

Brand	Labomed
Nose Piece	2
Application	Laboratory

In order to fulfill the ever-evolving demands of our esteemed clients, we are engaged in providing an optimum quality array of Monocular Microscope Model Sigma.

General Specifications:

• High-grade achromatic objectives & WF eyepiece par-centered & parfocal on CNC machines.
• With 1W white LED on Heat Sink
• Life more than 1,00,000 hours & lithium Ion Battery Back-up for use when power supply failure.
• All metallic moving parts on ball bearing guides to give highly sensitive & smooth motion.

Technical Specifications:

• Viewing Body: Integrated Monocular tube, 45° inclined.
• Eyepieces: wide field eyepiece 10x/18mm, with foldable eye guard, anti-fungus coating.
• Nosepiece: Reverse quadruple turret (Ball bearing type) with rubber grip.
• Par-centered & parfocal
• DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.
• Stage: Rectangular size 120mm x 125mm, a Mechanical stage having axial drives for X & Y movement of slide & graduated scales.
• Focusing: Co-axial coarse and fine focusing with brass gear movements for smooth operation.
• LED illumination, variable intensity control with illuminated
• ON/OFF switch rechargeable battery. Up to 100,000 hours of LED life.
• Electrical: Input 200v-240v AC through external power adapter for battery charging.
• Lithium - Ion rechargeable battery built-in.
• Easy to replace Battery.
• Packed in a styrofoam box with operation manual, dust cover, cleaning cloth, power adapter.
