Million Megohm Meter

Testing Voltage	220 V
Storing-Data	80 groups
Weight	9 Kg

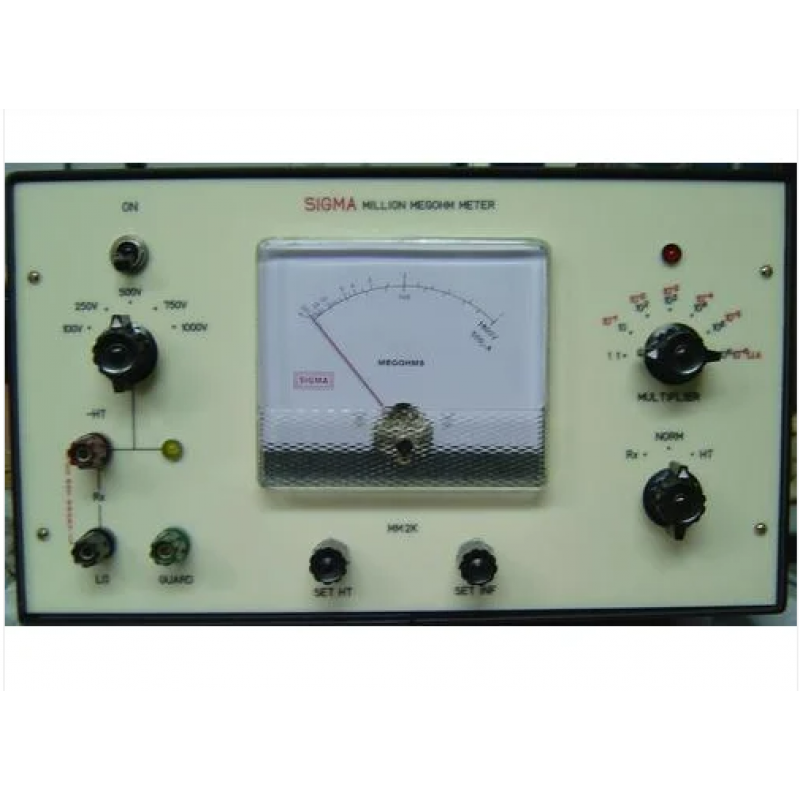

SIGMA Million Megohm Meter is an ideal instrument for measuring high resistance and insulation. Since it applies a highly stable IC regulated H.T up to 1000VDC across the element under test, it serves the purpose of a megger also. It measures the insulation resistance of the sample under stress by subjecting it to the voltage. It has a measuring range of 1 Megohm to 100 Million Megohms in seven decade ranges and is capable of reading up to 100 Million Megohms (10 15 Ohms) with accuracy operational amplifiers ensures low drift, low input bias current,
highly stable performance. A separate HT-NORM-RX switch with amber colour lamp indication facilitates to link or de-link HT with terminal. The HT can also be across checked and set accurately in HT position by observing PSD and using fine and coarse H.T controls.

Technical Specification:

Measurement Range	1 Mohms to 100 Million Megohms in seven ranges
Accuracy	Within ± 5%
Test Voltage	High Stable: 100, 250, 500, 750, 1000VDC, adjustable accurately by Set H.T pot.
Overload Protection	Input operation amplifier protected against accidental overload in first Four ranges
Meter	200μA moving coil type for good resolution
Power Supply	230V ±10% at 50Hz
