Microprocessor KF Moisture Titrator

Microprocessor K.F. Moisture with built-in magnetic stirrer, auto computation of moisture in ppm, % age and mg of water. Storage of date, time, batch no. & final results of 20 titrations. K.F. Reagent dispensing by motorised dispenser. Final results are flashed on 8 digit digital display. External printer attachment facility available.

Features:

• Auto Computation of Moisture in ppm, % & mg H2O
• Storage of Date, Time, Batch No. and Final Results.
• 8 Digit Digital Display.
• Motorized Dispensing.
• External Printer Attachment Facility.

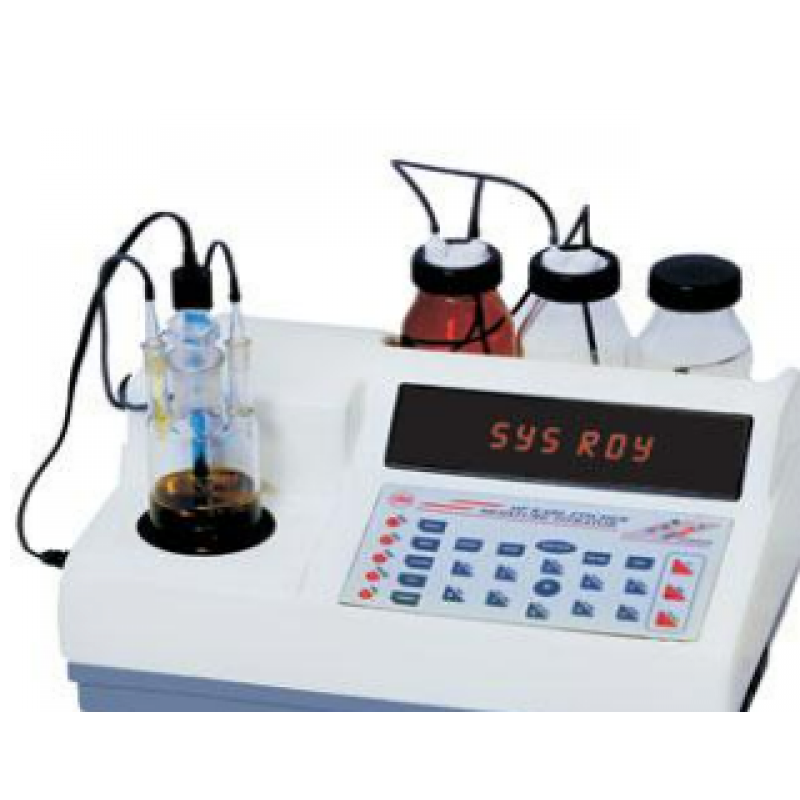

Microprocessor K.F. Moisture Titrator, Model SSE-1760 is the finest volumetric titrator available. It uses the latest microcontroller technology to give enhanced accuracy and reproducibility. The titrator eliminates the use of conventional delicate and fragile glass burettes and plunger systems. It uses a highly sensitive motorized dispensing system for precise control of titrant volumes. This titrator analyses the moisture content in liquid samples, powder, fine particles and fiber samples that are soluble in alcohol or solvents. The moisture content is displayed in ppm, % age and mg H2O.

The system has 24 soft touch membrane type keys for ease of operation. Complete numeric keypad is provided so as to comfortably need the values of samples, density, titer factor, date, time etc. The end point indication is given by both visual LED and audible alarm. The titrator has the facility for automatically calculating the titer factor of the Karl Fischer reagent. It uses the repeated averaging method so as to give the most accurate titer value. It has the storage facility of date, time, batch no. and final results of 20 titrations using the FIFO method. The internal battery backup provision has been made to store the results and other titration parameters for a minimum of 1 month even if the instrument is switched OFF. Provision for external printer attachment is available so that any of the stored results can be printed even at a later stage.

Technical Data:

Measuring Range: 50 ppm to 100% of mois
Measuring Method: Karl Fischer volumetric titration method
K.F. Dispensing: Highly sensitive motorized dispensing system
Resolution Of Titrant Volume: 0.01 ml
Indication Of Titrant Volume: 0.00 to 99.99 ml on display
Moisture Content Calculation: % age : (0.00 to 100%)
(AUTOMATIC)                                             ppm : (50 to 999999)
                                                                     mg H2O : (0.00 to 999.99)
Kf Titer Factor: In-built automatic KF Titer Factor calculation facility
End Point Alarm: Visual LED and Audible Alarm
Wait Time For End Point Alarm: Adjustable (1 to 59 seconds)
Dispensing Pump Calibration: Available through keyboard
Keyboard: 24 keys soft touch, membrane type
Sample Storage: Upto 20 latest samples using FIFO memory
Display: 8 digit bright red, seven segment LED display
Clock: In-built clock with date and time display
Stirrer: In-built magnetic stirrer with adjustable speed
Reagent Bottles: 3x250 ml bottles for KF Reagent, Methanol & Calcium Chloride
Printer Interface: External Dot-matrix Printer interface available
Power: 230 V AC + 10%, 50 Hz
Dimensions: L 360 x B 295 x H 175 mm (Approx.)

Standard Accessories:
Dual Platinum Electrode * Titration Vessel * Built-in Magnetic Stirrer * Teflon Coated Magnetic Stirring Capsule * 250ml Bottle for Methanol * 250ml Reservoir Bottle for KF Solution *25?l

Syringe * 250 ml Bottle for Calcium Chloride * Adaptor for KF Reservoir *Adaptor for acetone Reservoir Bottle * Set of Dispenser Tubes * Set of Connecting Tubes * Main Lead *Instruction Manual
