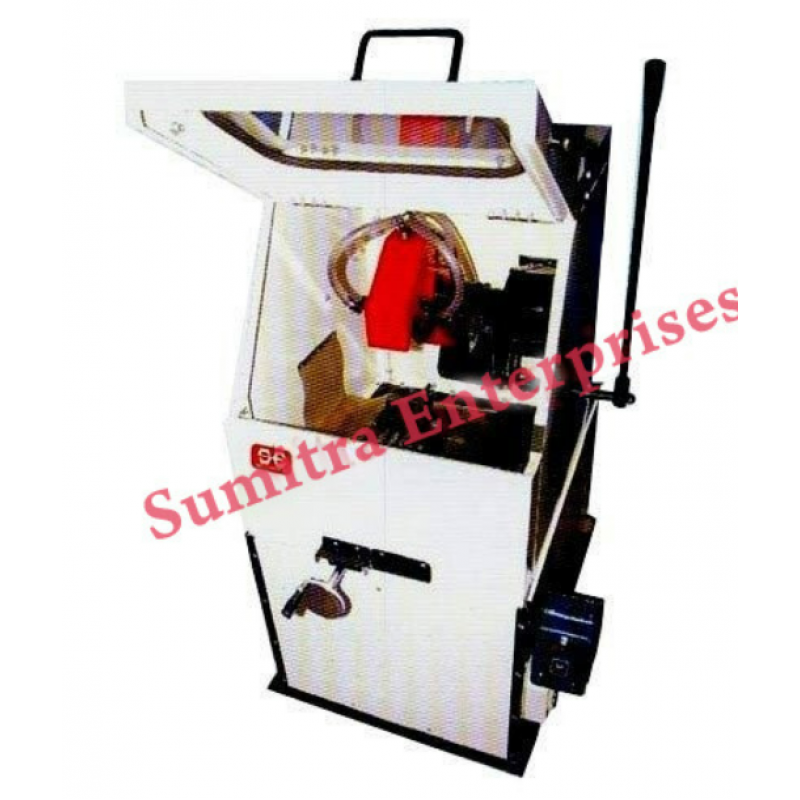

Metallurgical Cutting Machine

With the support of our dexterous workforce, we are able to offer high-grade Metallurgical Cutting Machine at the most market-leading price to our clients. The offered product is equipped with coolant circulation system with suitable filtering arrangement which provide more optimality to the offered cutting machine.



Features:



• Coolant circulation system is provided with suitable filtering arrangement

• Light attachments system is provided for clean and accurate cutting of samples

• X-Y movement vice is made up of M.S, specially designed

• Heavy duty motor is provided 2/3/5 HP, 3 phase

• Large viewing window to monitor the cutting operation

Technical Specifications:

Operation	Manually by moving motor to cut the sample.
Cutting Operation	By manual cut-off wheel in chop type procedure.
Cutting Motor Power	2/3/5/10/15 H.P,3 Phase.
Coolant Motor Power	Tullu Pump
Cut-Off Wheel Speed	2800 rpm or superior
Cutting Capacity	10-150 mm
