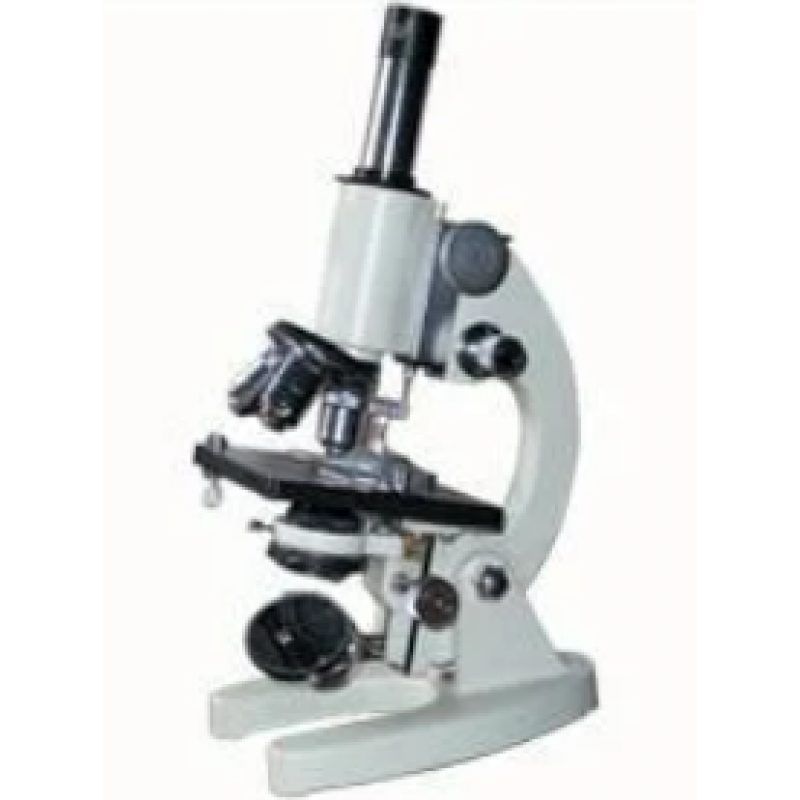

Medical or Pathological Microscope

Widely used in Pathological labs and Educational institutes.
Pressure Die-Cast interchangeable components with robust & sturdy construction.
Separate Coarse & graduated Fine Motion with sensitivity of 0.002 mm.
Fitted with attachable graduated Mechanical Stage having X and Y movements.
Sub stage Abbe Condenser with Iris Diaphragm & filter holder, focussable with rack & pinion.
Illmination by Plano-concave reflector of dia 50 mm. (Interchangeable for electric illuminator 220 V- 15 W directly workable on mains)
Optical combination :-
Eye Piece :-Coated WF 10X & Huy 5X
Objective :- A chromatic 10x , 40x/45x (SL) & 100x (SL) Oil Immersion.
Scratch proof highly resistant epoxy finish / powder coated
Packed in Styrofoam packing inside a Sunmica clad Plywood box.
Supplied with detailed working manual, Dust Cover, cleaning cloth & lens cleaning paper.
