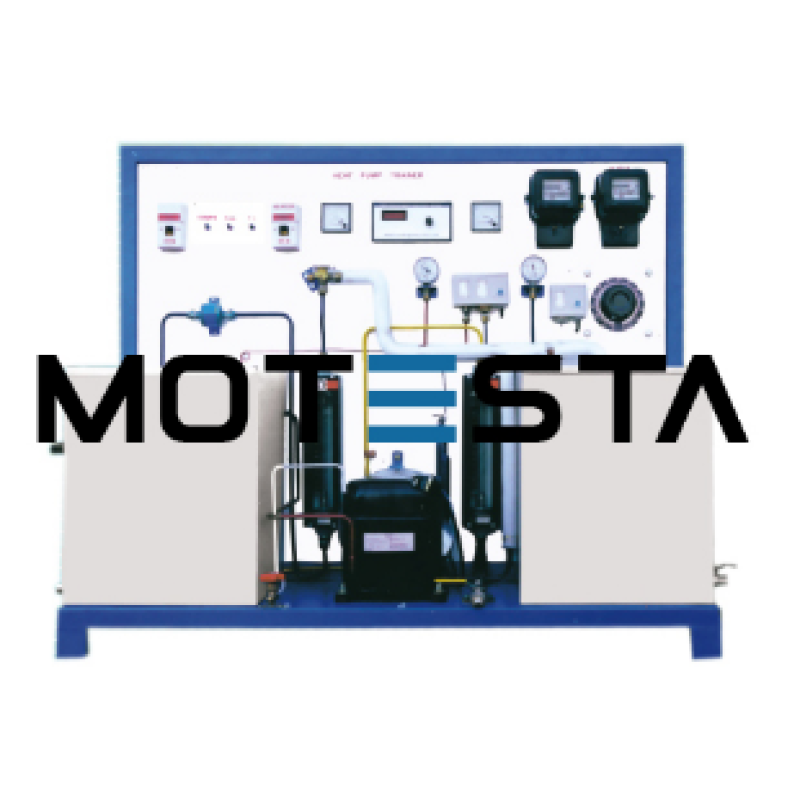

Mechanical Heat Pump Test Rig
This Laboratory scale working model housed on a M.S. Square tube frame and further mounted on a wheels (CI) with instrumentation panel is used i) To study the performance of vapour compression Refrigeration system using water cooled condenser / water cooled evaporator, ii) Co efficient of performance (COP) of the system.
01. Hermitically Sealed Compressor | |
---|---|
Capacity | : 1/3 HP |
Make & Model | : SHRIRAM/KIRLOSKAR |
02. Condenser | |
Type | : Shell and Coil with Refrigerant inside the tube |
03. Evaporator Water Cooled | |
Type | : Shell and Coil with refrigerant Inside the tube |
04. ROTA METER | : 1 No |
Make | : Eureka |
05. Hand Shut Off Valves | |
Size | : ¼ |
Make | : Kim/vanaz/equivalenT |
06.Filter Drier | |
Make | : Danfoss/equivalent |
07. Energy Meters | |
Make | : Bhel/indimeter/equivalent |
08. Thermostat | |
Make | : Danfoss/equivalent |
09. Compound Gauges | : 1 NO |
Range | : -30 Hg to +150 psi |
Make | : Fiebig/equivalent |
10. Measuring Instruments | |
a) Digital Temperature Indicator |
|
11. Sump Tank | |
a) Capacity | : Suitable |
b) Material | : S.S |
12. PUMP | |
a) Make | : UP National Mgf. Co.,/ Equivalent |
13. Rota Meter | |
Make | : Eureka/ Equivalent |
Optional | : At Extra Cost Line Voltage Corrector |
Capacity | : 4KVA |
Output | : 230V+/- 10% |
