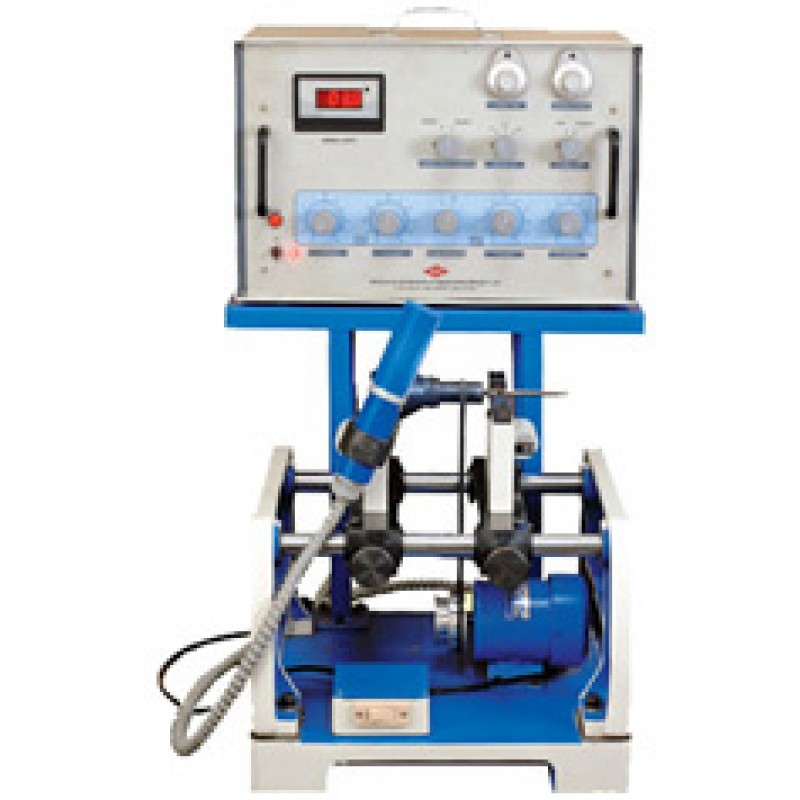

Strobodynamic Balancing Machines (Model : SSBM / FSBM)
- Small & compact machine with high accuracy for balancing of small rotors like textile spindles, electric power tool armature, etc.
- Special electro dynamic pickups are used for sensing minute vibration due to imbalance in the rotor.
- Machine is provided with electronic measuring control panel with digital panel meter for amount indication & xenon flash tube with brilliam white light for locating position of unbalance.
- Rotor loading and unloading is very easy, as a special quality stretchable rubber belt is used for driving the rotor under trial.
- Machine is very sensitive & accuracies of the order of 0.2 micron.
- Machine does not require any concrete foundation. It can be operated by placing on a plain surface.
- Machine requires single phase supply of 220 volts, A.C., 50 Hz. As such machine can be conveniently located where single phase supply is available.
- Operation of the machine is very simple and does not requires any skilled operator, once proper training for operating the machine is given.
- Suitable for rotors from 0.1 kg to 3 kg.
- Balancing speed range is 800 to 3000 rpm
Technical Specifications Of Horizontal Belt Driven Two Plane Dynamic Balancing Machine, Model: SSBM / FSBM :
| MODEL | UNIT | SSBM-1 | SSBM-3 | FSBM-10 | FSBM-30 | FSBM-50 | FSBM-100 | FSBM-300 |
| Weight of Rotor | kg. | 0.03 - 1 | 0.1 - 3 | 0.3 - 30 | 0.3 - 30 | 0.5 - 50 | 1 - 100 | 3 - 300 |
| Max. Dia of Rotor | mm | 100 | 100 | 250 | 500 | 500 | 800 | 800 |
| Max. Distance between Bearing | mm | 250 | 250 | 700 | 700 | 1200 | 1500 | 1500 |
| Journal Dia. Range on Std. Roller Carriage | mm | 5 - 20 | 5 - 20 | 5 - 50 | 5 - 50 | 5 - 50 | 20 - 100 | 20 - 100 |
| Balancing Speed (n) | rpm | 800 - 3000 | 800 - 3000 | 800 - 3000 | 800 - 3000 | 800 - 3000 | 800 - 3000 | 800 - 3000 |
| Power of Drive Motor | h.p. | 0.05 | 0.05 | 0.33 | 0.75 | 0.75 | 1.5 | 3 |
| Acceleration Capability in GD2n2 | kgm2n2 | - | - | 0.29 x 106 | 0.37 x 106 | 0.37 x 106 | 0.88 x 106 | 3.90 x 106 |
| Minimum Achievable unbalance | Microns or gmm/kg | 0.2 - 2 | 0.2 - 2 | 0.2 - 2 | 0.2 - 2 | 0.2 - 2 | 0.2 - 2 | 0.2 - 2 |
Machine Confirms to IS : 13277-1992
