Roll Crusher

Product Details:

Size	4" x 8"
Brand	Rajco
Material	Alloy steel
Motor	3 HP
Diameter	250 mm
Phase	Three Phase
Faces	100 mm

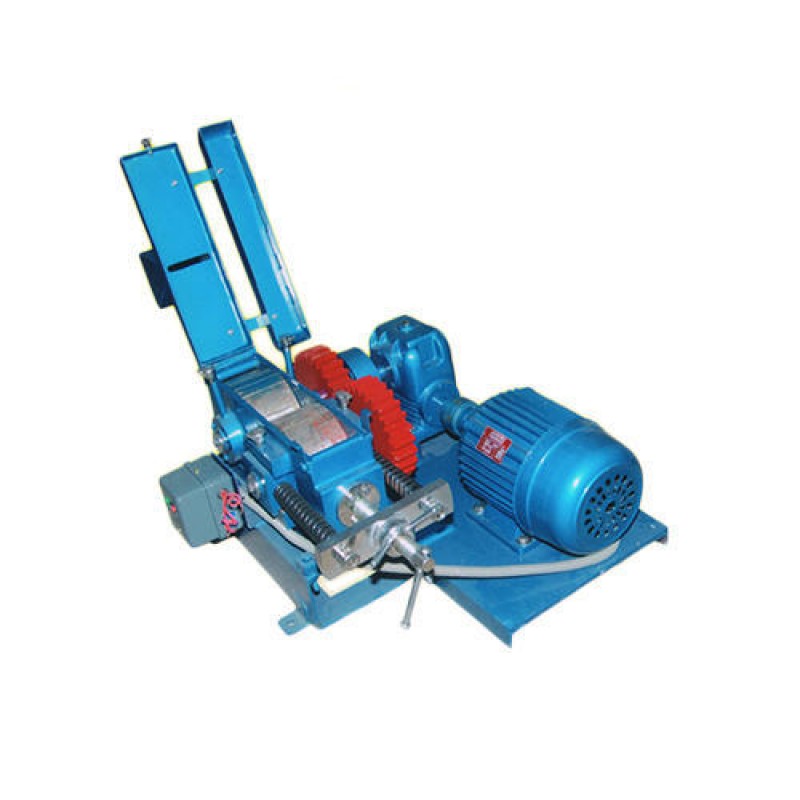

Roll Crusher comprise of two hardened alloy steel rollers with 100 mm. faces and 250 mm diameters. The rollers are fitted to a steel shaft and are mounted on heavy-duty gunmetal bearings. The outside bearings are provided with heavy duty compression springs, which help in increasing the space between the rolls when a piece of material cannot be crushed. Square threaded holes are provided to adjust the gap between the rolls. The drive is by a heavy duty motor, through V belts to a set of gears and further to the rollers. A hopper is provided for feeding the material. The whole arrangement is mounted on a fabricated steel frame. Supplied complete with a 3.0 H.P. motor, and starter following sizes available.

Other Details:
·         Size: 4” x 10” with motor 3 HP, 3PH
·         Size: 6” x 10” with motor 3 HP, 3PH
·         Size: 6” x 12” with motor 5 HP, 3PH
·         Size: 10” x 12” with motor 5 HP, 3PH

Additional Information:
·         Item Code: RSEP-311
