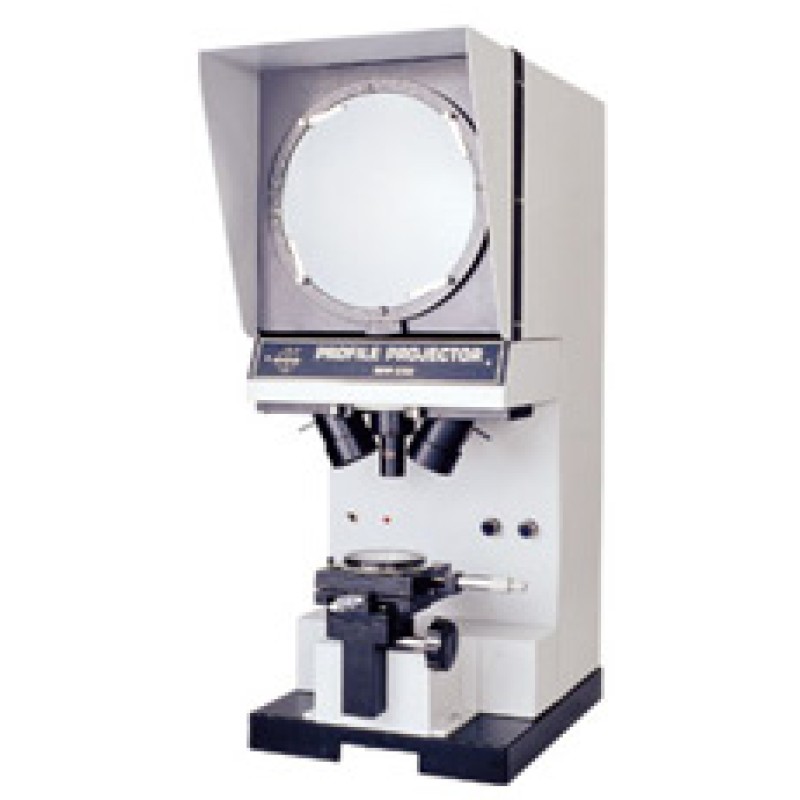

PROFILE PROJECTOR
RPP-250 Series
Standard Features :
Compact Light weight table top with easy operations. 250mm diameter screen with 90° cross line and chart holders. Screen is graduated to 360° with Vernier reading 6 minutes. Projection Light source with 24V/150W Halogen Lamp. Soluble Oblique Light source for surface illumination. Two adjustable dichroic reflector lamps 12V/100W each. Focusing can be adjusted manually by hand knob. High quality objective lenses. Optical distortion below 0.15%. Standard Magnifications : 10x, Optional 20x and 50x Measurements available through Manual or Digital Micrometers. Cooling by built-in noiseless & vibration free fan. Available in 110V & 220V through low voltage transformers. Supplied complete with operating instruction Manual.
Projection Capacity :
| ||||||||||||||||||||||||||||
Model No. & Specifications :
| MODEL NO. | RPP-250 | RPP-250DM |
| X-Y Range | 35x35mm* | 35x35mm* |
| Effective Table Area | 110x110mm | 110x110mm |
| Measuring Unit | Micrometer Heads 0-25mm | Digital Micrometer Heads0-25mm |
| Resolution | 0.01mm | 0.001mm |
| X-Y Counter | No | No |
| Digital Angle Counter | No | No |
| Optical Edge Detector | No | No |
| Rotary Measuring Stage | 360° grad. with vernier 6 min. | 360° grad. with vernier 6 min. |
| Stage Glass | Diameter 62mm | Diameter 62mm |
| Table Type & Size | Al. 125x125mm | Al. 125x125mm |
| Max. Workpiece Height | 100mm | 100mm |
| RPP-Software | No | No |
| Dimensions/Weight | 55x35x86cm/40Kgs. | 55x35x86cm/40Kgs. |
Profile Projector
- Views: 240
-
Krutam Technosolutions - Vendor Type: Manufacturer, Supplier
- Product Code: RPP-250-Series
- Availability: In Stock
- ₹0
