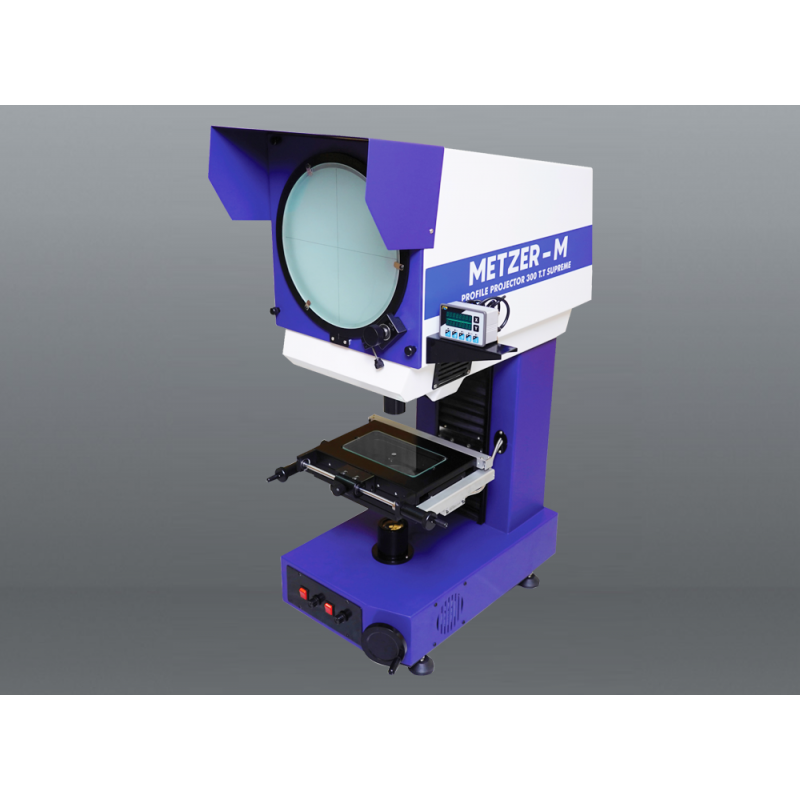

PROFILE PROJECTOR VISION PLUS MODEL METZ –300 T.T. (SUPREME)

PROFILE PROJECTOR VISION PLUS MODEL METZ –300 T.T. (SUPREME)

Specifications :

  • SCREEN: FINE GRAIN GROUND GLASS 300MM DIA. 300MM DIA.
  • LENS AXIS : VERTICAL
  • ELECTRONIC PROTRACTOR : SWITCHABLE DEGREE/DECIMAL, 1 MINUTE/0.01 DEGREE. DISPLAY RANGE :+/-360 DEGREE, ABS/INC, ZERO SETTING
  • STANDARD : 10X
  • OPTIONAL : 20X, 50X
  • ACCURACY (ON SCREEN) : 0.05% ON PROFILE AND SURFACE
  • WORK STAGE TABLE TOP AREA : 310X210MM, TWO T-SLOTS; X AND Y-AXIS QUICK RELEASE
  • MEASURING RANGE X/Y AXIS : 150X100MM
  • FOCUSING : 100MM
  • DIMENSIONS (APPROX) LXBXH IN MM : 625 x 845 x 1090
  • RESOLUTION : 0.001MM
  • ACCURACY : +/- (2+L/100)μM
  • MEASURING SYSTEM : BUILT IN GLASS SCALES ( SINO)
  • ADVANCED DIGITAL READ OUT : ZERO SETTING, INCH/MM, ABS/INC, MEASUREMENT OF X, Y, Angles, Lines, Distances, Circles(Electronica-EL25)
  • PROFILE LAMP : ONE 150 W, 24 V
  • SURFACE LAMPS : TWO 150 W, 24 V/100 W, 12 V
  • ILLUMINATION SYSTEM : ALL BULBS INDEPENDENTLY FAN COOLED. HIGH INTENSITY, TWIN BEAM DIRECT SURFACE ILLUMINATION WITH INTENSITY CONTROLLERS FOR VARIABLE BACKGROUND /FOREGROUND LIGHTING
  • POWER SUPPLY : 550 W
  • MASS : 100 KG APPROX
  • OPTIONAL ACCESSORIES : ROTARY TABLE, INCLINABLE CENTRES, V BLOCK WITH CLAMP
