Laboratory Pulveriser

Product Details:

Phase	Three Phase
Brand	Rajco
Disc diameter	175 mm
Maximum feed size	8 mm (approx)
Size of finished Product	72 to 100 mesh
Motor	3 H.P.
Voltage	440 Volts

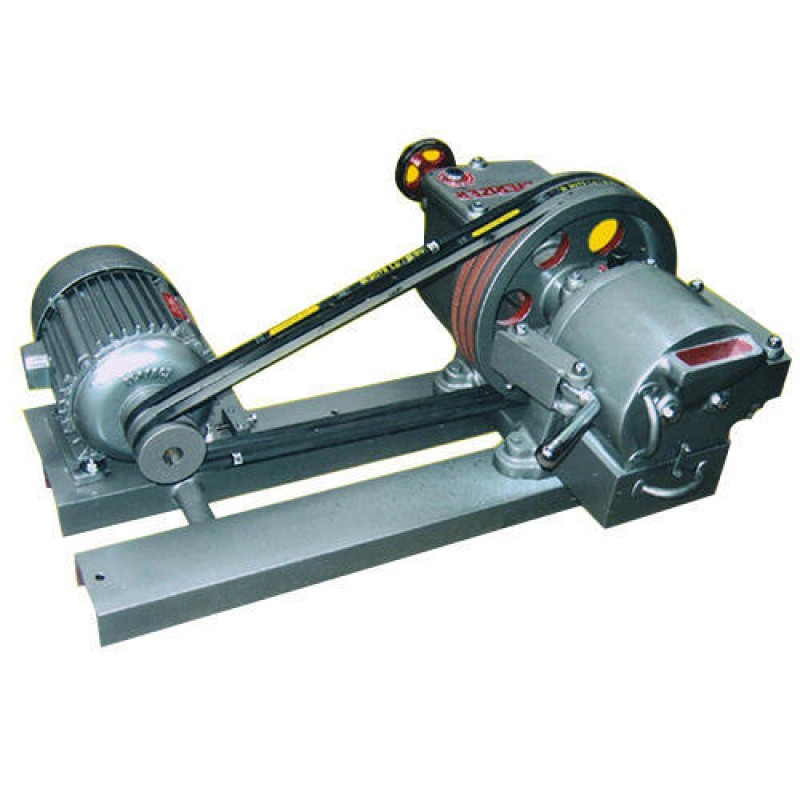

Rajco Laboratory Pulverizer is a disc type grinder, designed for grinding material to produce a fine mesh sample in one operation. It is a self-contained grinder furnished with a rotating disc having a planetary movement in a vertical plane. This feature gives added life to the wearing parts and delivers a product to uniform fineness. Maximum feed size is ¼ inch Grinding is done between two discs one of which is stationary and the other revolving eccentrically at high speed. The apparatus is supplied with heat treated disc of 7 inches in diameter Adjustment of the size of the product may be made by use of a convenient hand wheel while the machine is in operation or at rest. A self-locking device holds the hinged grinding chamber in place and affords easy and quick access to the grinding chamber for removal of ground samples and for cleaning.
