Tablet Hardness Tester

Tablet hardness testing is a kind of laboratory technique, which is employed to test breaking point of a tablet. For pharmaceutical units this process is an important part of medicine production that ensures tablets must be hard enough to withstand mechanical stress during various conditions such as storage and packaging, transportation and handling by the consumer etc.

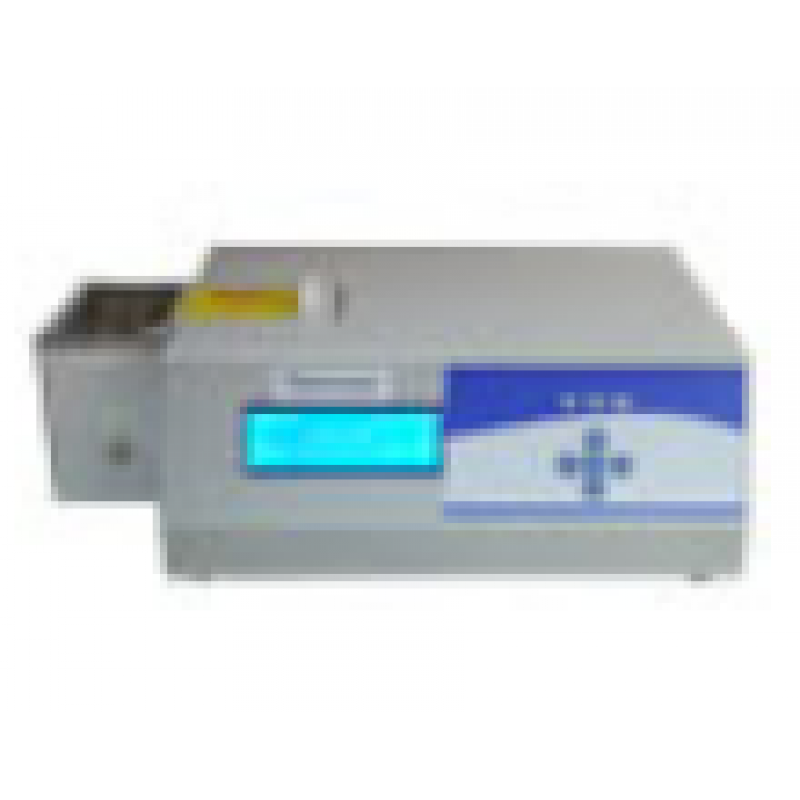

Our PX/THT-301 is a smart tablet hardness tester, which is available at reasonable price for supply all over India and overseas. This tabelet hardness tester is a microprocessor operated instrument and features digital display and highly user-friendly keypad interface ensuring fast measurements and accurate results. It is a compact machine and occupies very less bench space. It makes your testing procedure faster by taking maximum 25 tablet samples at one time.

No matter what size and color of tablet is, this tablet hardness testing machine can measure hardness (breaking strength) of all types of tablets, coated tablets and granules with respect of weight, thickness, width, diameter or length. The machine confirms current Pharmacopeia requirements and guarantees reliable results.

Features
Suitable for any kind of tablets	Microprocessor circuit for high accuracy
RS232 interface for connecting to balance	Provision to attach dot matrix printer
Max. 25 samples at one time	Meets current Pharmacopeia requirements
Password protected operation	User-friendly touch interface

Specifications
Model	PX/THT-301
Tablet Dimensions	Width: 0-25 mm Thickness: 0-10 mm Diameter: 45 mm
Measurement Units	mm (Millimeter) IN (Inches) Newton (N) kilopond (kp) Strong Cobb (Sc)
Measurement	Range: 1N- 300 N Accuracy: Better than 1 N
Maximum no of samples	25 tablets
Printer interface	Parallel printer port
Weighing scale interface	RS232 weighing scale port
Housing Construction	MS powder coated

Tablet Hardness Tester PX/THT-3957

This is another model of tablet hardness tester. It is digital and delivers superior accuracy. It is compliant to USP and EP and offers multi-parameter measurements i.e. thickness, diameter and hardness. 5 to 500N hardness is measured with this instrument, 800N is optional and provided on special request of the customer. Measuring units are N (Newton), KP (Kilo Pond) and SC (Strong Cobb). At rear side there is RS232 interface to add printer.

Specifications
Model	PX/THT-3957
Hardness Ranges	5 to 500N (800N Optional)
Hardness accuracy	>1N
Diameter & Thickness Range	1.5 to 35mm
Dia. Accuracy	>±0.05mm
Measuring Units	N (Newton) KP (Kilo Pond, 1 KP=9.81N) SC (Strong Cobb, 1KP)
Interface Ports	RS232 Printer
Power Supply	220 Volts 50 Hz

Handheld Tablet Hardness Tester

This handheld tablet hardness tester is small in size and handheld in design. It is designed to measure hardness of tablets with diameter 2 to 28mm. Hardness range of this instrument is up to 500N with accuracy of 0.05% of the full scale. It has an option to measure hardness in N, KGF and LBF. It is facility to store up to 10 test results. This portable tablet hardness tester is operated with 12 volts power adaptor or 1200 mAh rechargeable battery.

Specifications
Model	PX/THT-3956
Tablet Size	2 to 28mm
Hardness	Range: 5 to 500N Accuracy: ±0.05%FS
Measurable Units	N(Newton) KGF (Kilogram Force) LBF (Low Bound Force)
Battery	1200 mAh, 8.4 V, Ni-Hi Rechargeable
Power Adaptor	DC 12 V , 300 mA
Memory	RS232
