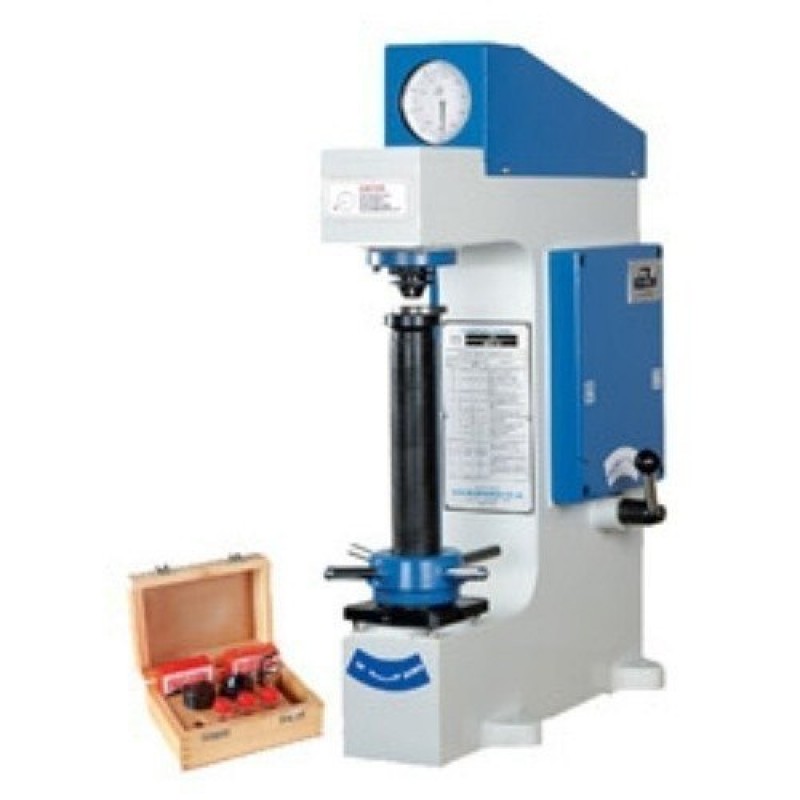

Rockwell Hardness Tester
Product Details :
| Model Name/Number | ASI-RHT |
| Brand | ASI |
| Automation Grade | Manual |
| Hardness Scale | HRC,HRB,HRA |
| Country of Origin | Made in India |
- This machine is designed for measuring hardness of metals & alloys of all kinds, hard or soft, whether round, flat or irregular in shapes.
- This machine is ideally suitable for laboratories, tool rooms, Heat treatment shops, R&D departments, inspection departments, foundries & educational institutions.
- Automatic weight selection with automatic zero setting dial gauge.
- Rockwell test minor load is 10 kgf & major loads are 60,100,150 kgf.
- Rockwell hardness scales such as HRA, HRB, HRC, etc. is obtained by using different types of indentors
- ( Diamond / Ball ).
- Test height x Throat is – 215 x 132 mm
- Extra test height & throat of 295 x 148 mm, Model : MRS-150 is also available.
- Motorized versions are also available.
- Machines strictly conforms to IS:1586- 2000.
Technical Specification :
MODELS | ASI-RHT |
Test Loads (Kgf) | 60, 100, 150 (Rockwell) |
Initial Loads (Kgf) | 10 |
Max. Test Height (mm) | 215 |
Depth of Throat (mm) | 132 |
Max. Depth of Elevating Screw Below Base (mm) | 230 |
Size of Base (mm) (Approx.) | 430 x 180 |
Machine Height (mm) | 635 |
Nett Weigth (kg.) (Approx.) | 65 |
Standard Accessories :
MODELS | ASI-RHT |
Rockwell Diamond Indentor | 1 No. |
Testing Table f 50 mm | 1 No. |
Testing Table f40 mm with ‘V’ Groove for round Jobs f 6 to 45 mm | 1 No. |
Steel Ball Indentor f1/16” | 1 No. |
Test Block HRC | 1 No. |
Test Block HRB | 1 No. |
Allen Spanners | 3 Nos. |
Clamping Device | 1 No. |
PVC Cover for Machines | 1 No. |
Rubber Bellow | 1 No. |
Instruction Manual | 1 Book |
Additional Information:
Delivery Time: Ready Stock
Rockwell Hardness Tester
- Views: 101
-
A. S. I. Sales Pvt Ltd - Product Code: ASI-RHT
- Availability: In Stock
- ₹0
