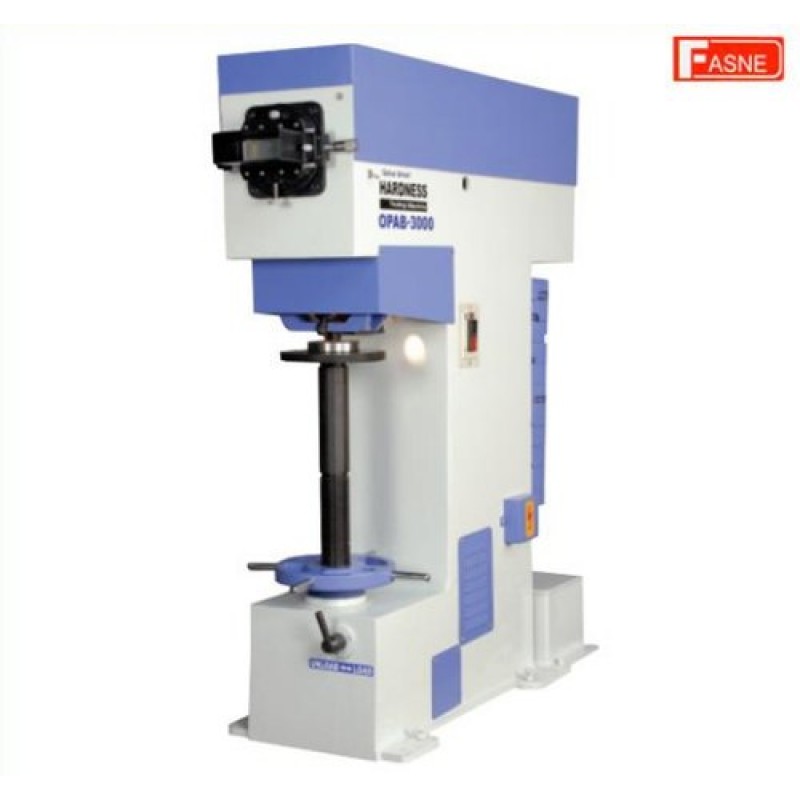

Optical Hardness Testing Machines

Features:

• This machine is designed for Brinell Hardness measurement on steel & other ferrous material & also on non-ferrous material like Brass, Bronze, Aluminum etc. The material can be cast, forged or rolled & the shape can be flat, round or irregular.
• This machine is a modified version of AKB-3000 which is provided with an inbuilt optical system of 14X magnification.
• An Automatic indenter index system is provided which tilts the indenter after the impression & the magnified image is visible on the screen for measurement with a 0.01 mm least count (Direct indentation measurement system).
• Thus this machine gives fast & accurate results with less operator fatigue.
• This model is mainly useful for production testing in Auto Shops, Foundries, Forge shops & Heat treatment units, etc. Its stability & Unique design of a floating fulcrum lever system ensure high accurate & dependability.
• The load application system is of dead weight type combined with mechanical lever system.
• The supporting hydraulic system is for initial lifting of load before each test & damping the load application system for smooth application of load.

Additional Information:

• Delivery Time: Within 30 days
