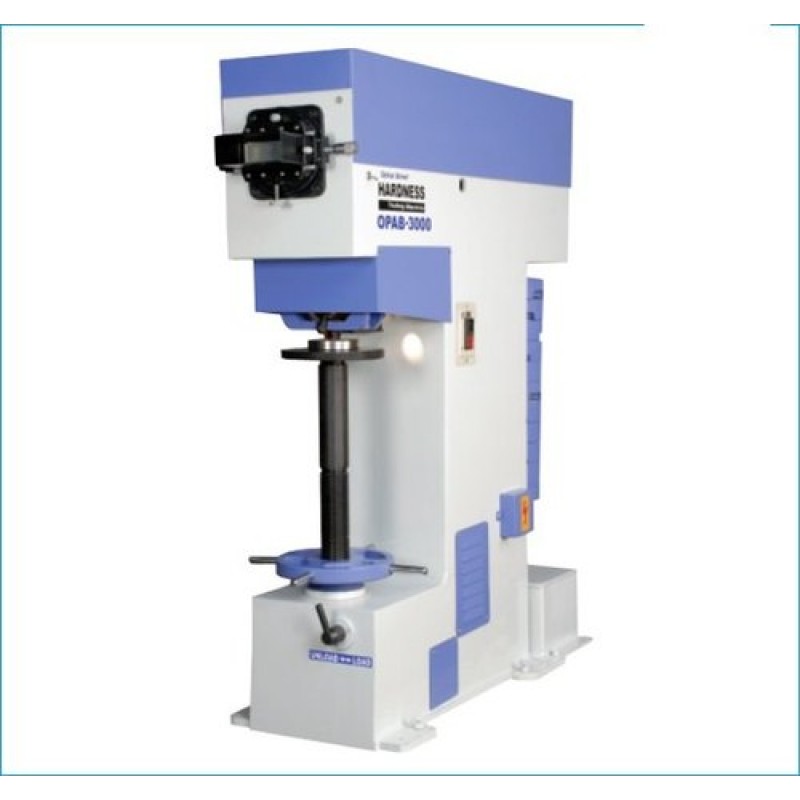

Optical Brinell Hardness Tester

Product Details :

• This machine is designed for Brinell Hardness measurement on steel & other ferrous material & also on non-ferrous   material like Brass, Bronze, Aluminum etc. The material can be cast, forged or rolled & the shape can be flat, round   or irregular.
• This machine is a modified version of ASI-3000 which is provided with an inbuilt optical system of 14X   magnification.
• An Automatic indenter index system is provided which tilts the indenter after the impression & the magnified   image is visible on the screen for measurement with a 0.01 mm least count (Direct indentation measurement   system).
• Thus this machine gives fast & accurate results with less operator fatigue.
• This model is mainly useful for production testing in Auto Shops, Foundries, Forge shops & Heat treatment units,   etc. Its stability & Unique design of a floating fulcrum lever system ensure high accurate & dependability.
• The load application system is of dead weight type combined with mechanical lever system.
• The supporting hydraulic system is for initial lifting of load before each test & damping the load application system   for smooth application of load.
• Test loads from 500 to 3000 kgf in steps of 250kgf.
• The height X Throat is 380 X 200 mm.
• Special Test fixtures for odd jobs / production testing can be supplied (Optional)
• Manual / Computerized type Brinell Hardness testing machines are also available.
• Accuracy conforms to IS:2281-2005 & BS:240.


Technical Specification

Standard Accessories

Additional Information:

• Delivery Time: Ready Stock
