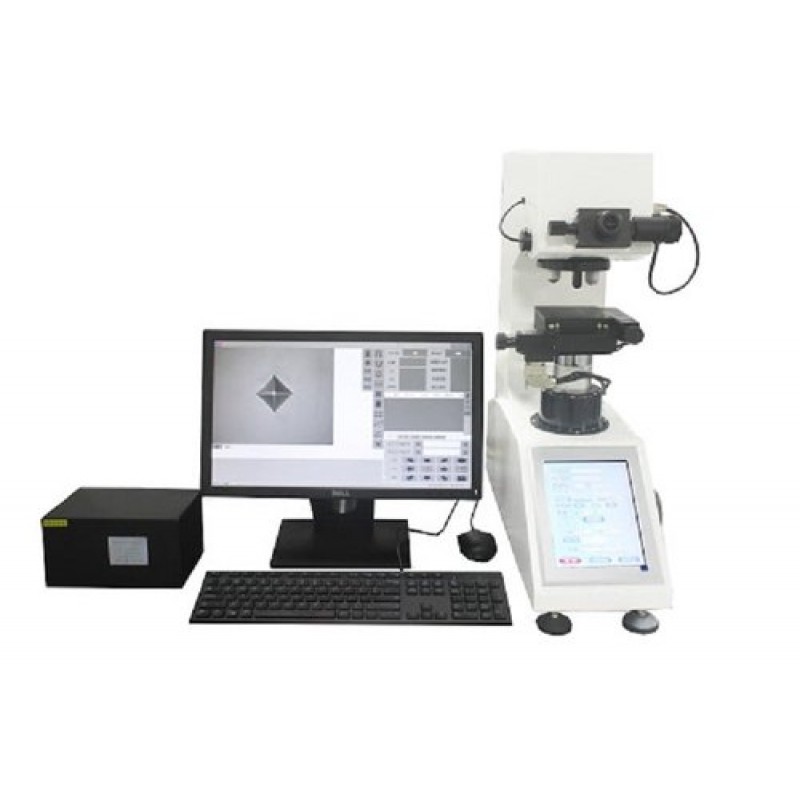

Model

MHT-1000ATT

Turret

Automatic Turret

Testing force

10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N),

300g (2.94N), 500g (4.9N), 1000g (9.8N)   Test force error: ±1.0%

Hardness scale

HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Loading speed

≤0.05mm/sec

Indenter

Standard Rectangular pyramid diamond indenter (136º±0.5º)

Min. measuring unit

0.25μm

Hardness value rang

5HV-3000HV

Hardness Value of Reading

Digital LCD Screen

Eyepiece

10X manual Digital   eyepiece

Objective lens

10X (observe), 40X (Measurement)

Total magnification

100X (For Observation) , 400X (For Measurement)

Loading method

Automatically (Load, dwell and unload the testing force)

Duration time

1-60s (each step is 1 second)

 Maximum height

90mm

Throat depth

95mm

Light Source

LED cold light source

Power Supply

220V + 5%, 50/60 Hz  (110V is available)

X-Y Testing Table

Dim.:100×100 mm,  Max. Travel Range: 25×25mm,

Moving Resolution Ratio: 0.01mm
