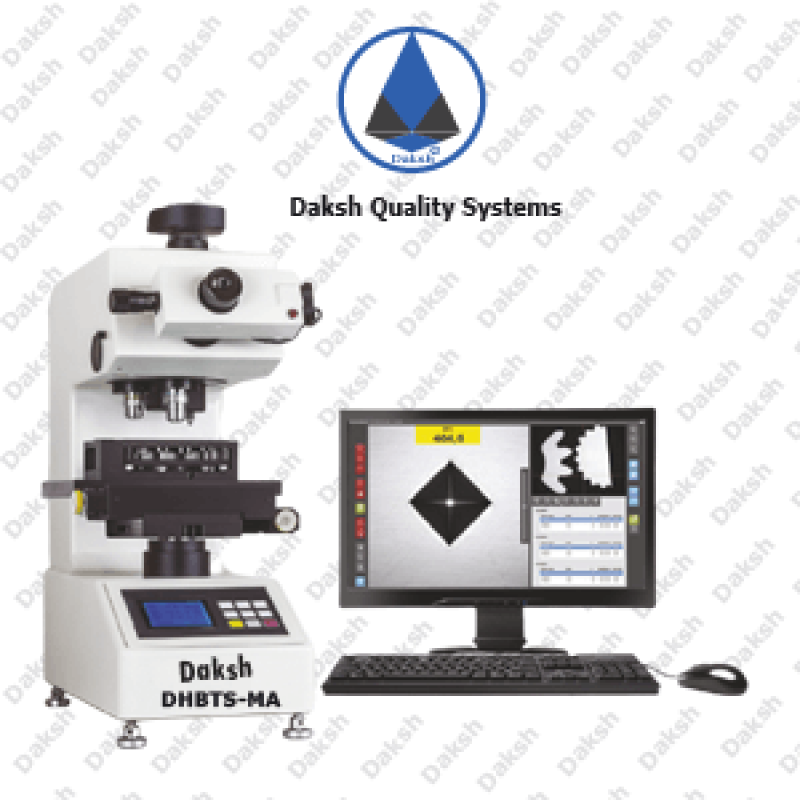

MODEL DHBTS-MA: Fully MOTORISED MICROHARDNESS TESTER

Product Details :

Features

• International Design
• Real Time Display
• Motorised XY stage with automatic software
• Automatic turret shifting between penetrator and object lens.
• High resolution and high brightness 8 inch LCD touch Screen
• Bright LED Light
• Omron Japan Digital Micro Eye Piece
• USB 5MP Camera with automatic 1 micron accuracy software

Specifications:

• Measuring range: 1-4000HV
• Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
• Conversion Scale: HR, HK, HB etc
• Magnifications of the measuring system: 100X, 400X
• Min. measuring unit: 0.01 μm
• Objective Lens & Indentor switchover: Auto Turret
• Objective lens and indentor: Coincident accuracy less than 1 μm
• X-Y Testing Table: 100x100mm, max move 25x25mm, min reading 0.01mm, Motorised XY stage Max. height of test piece: 85mm
• Software with inbuilt 3 ways to measure hardness and effective case depth: edge touch method,

Main accessories

• Flat Fixture: 1 pc
• Thin Specimen Fixture: 1 pc.
• Magnifications of the measuring system: 100X, 400X
• Horizontal adjusting screws: 4 pc
• Diamond pyramid penetrator: 1 pc.
• Micro-Vickers standardized block: 2 pcs.
