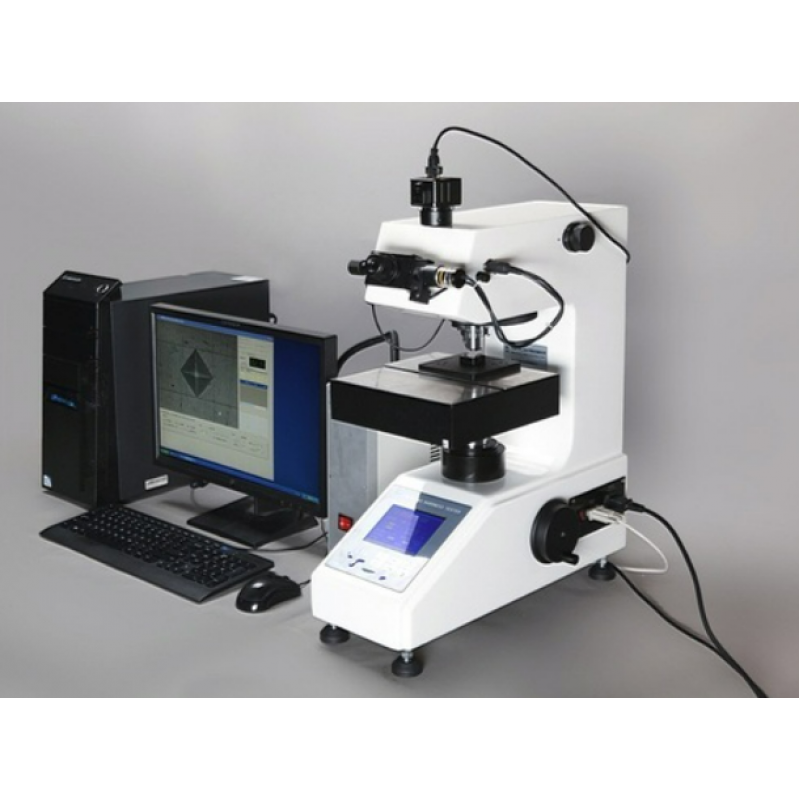

Fully Automatic Digital Micro Hardness Tester

The new type Micro Hardness Testers integrated with optics, mechanics and electricity. It is famous as its fashion and decent design,high testing precision, stable functions and simple operation.

Main Features:1. With Vickers hardness and Knoop hardness testing capabilities, and testing force can be extended to 2KG.2. The testing data able to be printed directly by the built-in printer.3. Can be connected with computer, used the image analysis software to analyzing the physical andchemical properties of the material.4. Testing method, testing power and duration time can be displayed directly on the LCD screen. Thehardness value can be displayed directly by entering the indentation diagonal length and avoid thecomplication of the look-up table.5. According to different visual habits of the operators, the strength of the light source can be adjusted.To avoid the visual fatigue for long time operation.6. The independent research and development of lifting system and positioning system, ensured theaccuracy and repeatedly of the testing process.7. The optical system designed by senior optical engineer (who worked in the Shanghai Optics And FineMechanics Institute, Chinese Academy of Science) not only meet the definition of hardness testingrequirements, but also can observe the microstructure of the material.8. Reserved image channelcan be connected with computer, used the image analysis software toanalyzing the physical and chemical properties of the material.

Main Uses:1. Ferrous metals, non-ferrous metals, castings and alloy materials.2. Structure of metal, metal surface processing layer, plating layer, hardening layer ( oxidation, coating anda variety of infiltration layer )3. Heat treatment and carbonation specimen, quenching and mini parts which with miscellaneous point.4. Applicable to the Knoop hardness test of glass, ceramic, agate, precious stones and other non-metallichard but brittle materials.
