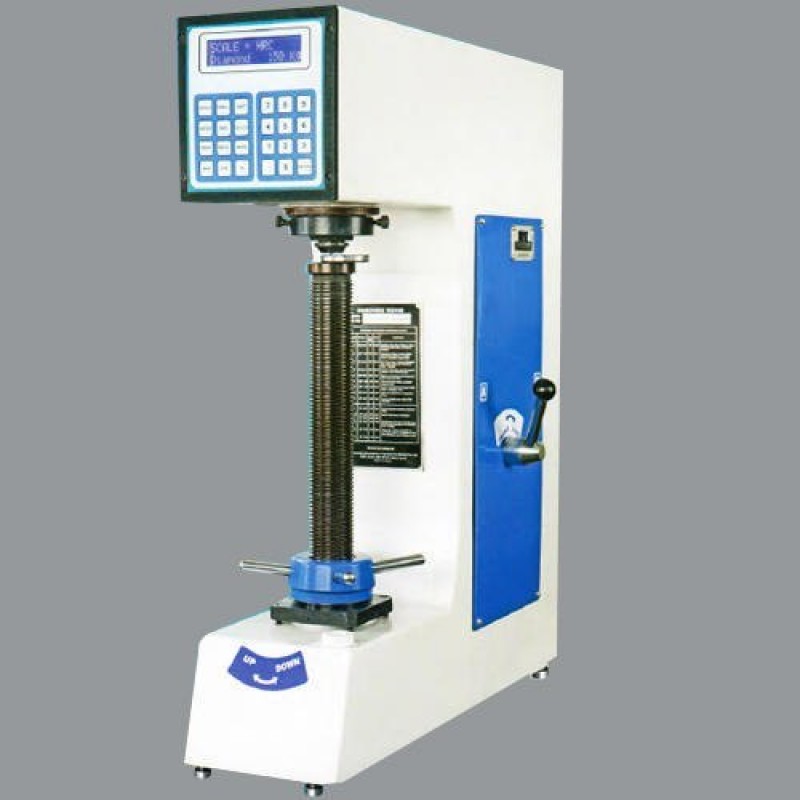

Digital Rockwell Hardness Testers
Product Details :
| Model Name/Number | ASI-RHTD |
| Brand | ASI |
| Country of Origin | Made in India |
- This machine is designed for measuring hardness of metals & alloys of all kinds, hard or soft, whether round, flat or irregular in shapes.
- Semi-automatic, motorized, digital, microprocessor based panel. We can get hardness in digital version.
- Centronics parallel port for connecting dot matrix printer.
- Three modes of operation viz. Motorized automatic mode, Motorized mode & Manual mode.
- Automatic weight selection by thumb wheel.
- Test height x Throat is - 295 x 148 mm.
- Machines strictly conforms to IS:1586 / 2281, BS: 240, ASTM-E-10
Technical Specification :
MODELS | ASI-RHTD |
Test Loads (kgf) | 60, 100, 150 (Rockwell) |
Initial Loads (kgf) | 10 |
Max. Test Height (mm) | 295 |
Depth of Throat (mm) | 148 |
Max. depth of elevating screw below base (mm) | 290 |
Overall Dimensions | 580 x 270 x 915 |
Nett. Wt. Approx. (kg) | 110 |
cales Displayed | Rockwell A, B, C, D, E, F, G, H, K, M, P, R, S, V, L in Nos. 1 to 15 resp. |
Least Count | 0.1 |
Minor Load Setting | By Bar Graph Indicator (Manual Setting) |
Load Control | Automatic (Loading, Dwell, Unloading for major load) |
Dwell Time | 1 to 99 seconds selectable |
Printer Interface | Centronics Parallel Port to connect Dot Matrix Printer |
|
STANDARD ACCESSORIES :
Rockwell Diamond Indentor | 1 No. |
Testing Table f 50 mm | 1 No. |
Testing Table f40 mm with ‘V’ | 1 No. |
Steel Ball Indentor f1/16” | 1 No. |
Test Block HRC | 1 No. |
Test Block HRB | 1 No. |
Steel Ball f1/16” | 5 Nos. |
Allen Spanners | 3 Nos. |
Clamping Device | 1 No. |
PVC Cover for Machine | 1 No. |
Rubber Bellow | 1 No. |
Instruction Manual | 1 Book |
Additional Information:
Delivery Time: Ready Stock
Digital Rockwell Hardness Testers
- Views: 110
-
A. S. I. Sales Pvt Ltd - Product Code: ASI-RHTD
- Availability: In Stock
- ₹0
